Pico Technology TA061 Oscilloscope Probe, Passive Type, 1.5GHz, 1:10, SMA Connector, Щупы для осциллографа

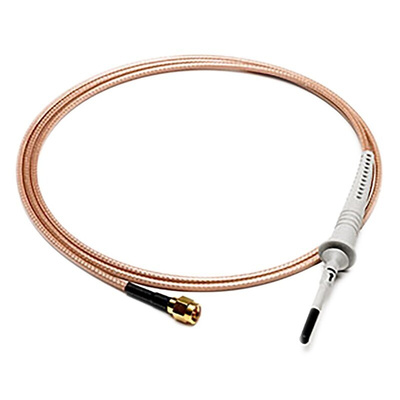

Pico 1.5GHz Low Impedance Passive Probe TA061, 10:1 with SMA

Pico TA061 is a low-impedance, low-capacitance probe designed for use with oscilloscopes that have 50Ω input impedance and SMA input connectors. Applications include digital communications and RF design.

Narrow 2.5 mm diameter at the probe tip
New IC contact system for 0.5 to 1.27 mm pitch
Interchangeable spring contact tip
Ideal for measurements of SMT components
Coaxial design
Input resistance 500Ω
Input capacitance 2pF
Input coupling of the measuring instrument 50Ω
System bandwidth (–3dB) 1.5GHz
Rise time (10% – 90%) 240ps
Rated voltage 12 V DC including AC pk
Cable length 1.3m

Passive Oscilloscope Probes

Note

All the products in this range are supplied for use with instruments with a permanent earth connection.
