Pico Technology PP877 Oscilloscope Adapter, For Use With Oscilloscope

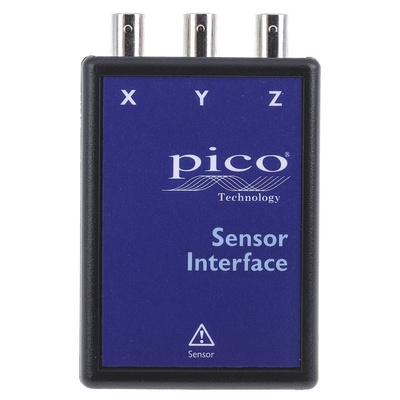

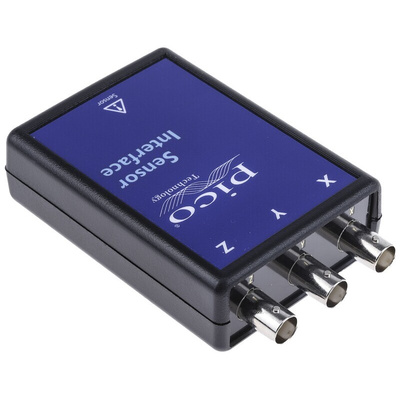

Pico Three Axis Accelerometer and Oscilloscope Interface PP877

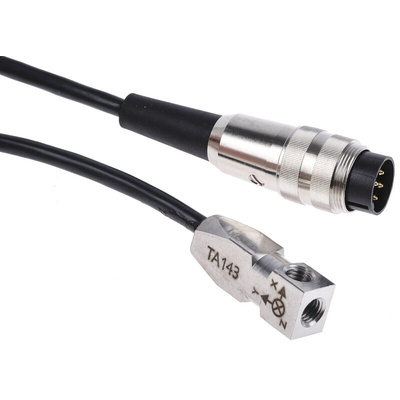

Pico Technology supplies accelerometers that connect to an oscilloscope for measuring noise and vibration. The Pico PP877 is a MEMS-based three-axis accelerometer and oscilloscope interface. It is supplied with 3 short BNC to BNC cables which plug directly into any PicoScope oscilloscope with 3 or more analog channels. The PP877 is particularly recommended for use with high-resolution oscilloscopes such as the PicoScope 4000 Series, in order to take advantage of their increased sensitivity.

± 5 g measurement range (measurable acceleration)
DC to 350 Hz vibration frequency range
Output BNC 0-2 V DC coupled
Output scaling 99 to 122 mV/g
0 g output (all axes) 0.85 to 1.15 V
BNC overvoltage protection 30 V
Shock survivability (sensor head) 10,000 g
Thread mounting (sensor) " x 28 UNF
Temperature range (operating) sensor head -40 to +85 °C
Dimensions 105 x 65 x 27 mm (sensor interface including BNCs), 12 mm x 18 mm diameter (magnet, including fitted grub screw)
Weight 120 g (interface), 80 g (vibration sensor)

Approvals

EN61326-1:2006

Supplied with

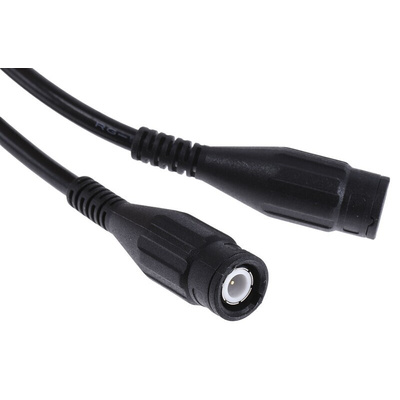

Mounting magnet, BNC to BNC cables (x3), battery (lithium primary cell) CR123(A)

Three Axis Accelerometer Data Sheet
