TMV 2-2415SHI, TRACOPOWER TMV 2HI DC-DC Converter, 15V dc/ 132mA Output, 21.6 → 26.4 V dc Input, 2W, Through Hole, +80°C Max, Преобразователь

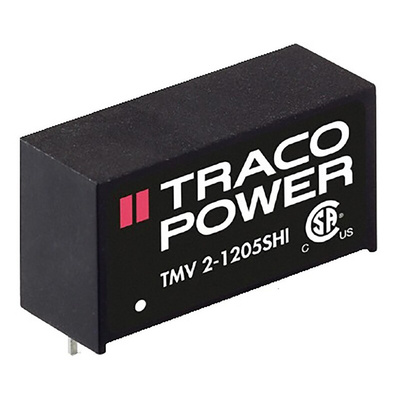

Traco 2W SIP Unregulated Isolated DC-DC Converter - TMV 2HI Series

The Traco Power TMV 2HI series is a range of miniature isolated, 2 Watt, DC/DC converters in a SIP-7 package. The TMV 2HI DC-DC converters feature an operating temperature of -40°C to +80°C, without derating and continuous short-circuit protection. The small size and high isolation to 5700Vdc of the TMV 2HI Series make them an ideal solution for many space critical IGBT applications that are used in today’s modern appliances and transportation.

Ultra compact SIP-7 package
Very high I/O-isolation 5’700 VDC
Dedicated for IGBT applications
Operating temperature range -40°C to +80°C
Industry standard pinout

Standards

CAN/CSA-C22.2 No 60950-1-07, 2nd ed; A1:2011
ANSI/UL No. 60950-1, 2nd ed.; A1:2011
IEC 60950-1:2005 (2nd edition); Am 1:2009
EN 60950-1:2006/A11:2009/A1:2010/A12:2011

Approvals

CAN/CSA, ANSI/UL, cULus, IEC, EN
