SV431DDVDUA, StarTech.com 4 Port Dual Monitor USB DVI KVM Switch, 3.5 mm Stereo 1920 x 1440 Maximum Resolution

Note

While both DVI-I (analog) and DVI-D (digital) are supported by the KVM, source PCs must output the same signal for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections

SV431DDVDUA KVM Switch DVI and VGA

The SV431DDVDUA 4-port DVI VGA dual monitor KVM switch lets you control 4 Dual Display computers using a single USB mouse and keyboard peripheral set.

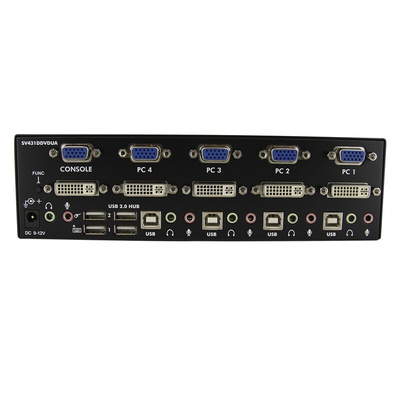

This dual view KVM switch provides 1 VGA and 1 DVI-I port per computer connection for high-resolution video, as well as audio switching capability between connected computers.

The DVI/VGA KVM switch features an integrated 2-port USB hub that allows USB 2.0 peripherals to be shared between connected computers, and offers a compact design with a rugged metal chassis for durable performance.

This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.

Rackmount your KVM switch
If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.

Features & Benefits

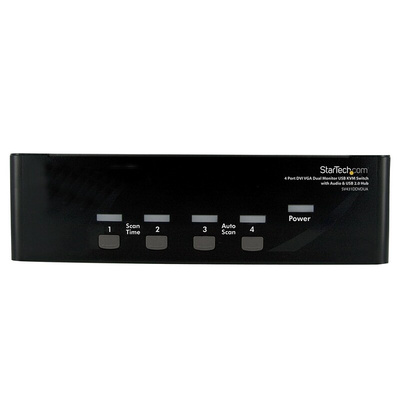

• Direct channel selection and operation using front panel push-button or keyboard hotkeys
• Supports a maximum digital resolution of 1920 x 1200 and analog of 1920 x 1440
Recommended resolution is 1920 x 1200
• OS independent (no drivers or software required)
• Independent or simultaneous audio switching
• Full support for plug-n-play peripherals
• Rugged, all-metal chassis for use in harsh environments
• Status LED display for easy port status monitoring
• USB style keyboard and mouse, plus two other USB 2.0 peripherals can be shared between up to two computers
• Tone indicator for computer switching
• Selectable time intervals for auto scan
• Rear function key to adjust video strength
• HDCP compliant
• Support DDC2B emulation and EDID pass through, which allows the display adapter to recognize and auto configure screens to match the display capabilities
• Supports Dual Monitor/Flat Panel Displays [1 x DVI + 1 x VGA]
• High-resolution DVI and VGA ports support almost any dual display scenario
even with one DVI + VGA PC, and one dual DVI PC, an adapter can be used with this KVM to support your configuration
• Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals eliminating the expense of duplicate devices
• Absolutely no software or drivers required providing a completely OS independent KVM solution

Applications

• Perfect solution for desktops, workstations and servers with both VGA and DVI-digital ports, allowing a user to take advantage of dual monitor configurations
• Ideal for financial/banking industries, graphic designers, engineers, multi-media designers, and industries using CAD/CAM , where high resolution dual monitor units are needed
• Suitable for use in environments with electromagnetic interference, based on sturdy metal design
• Versatile support for setups where one machine is DVI & VGA, and the other is VGA & VGA (with available adapters)

What’s in the package?

• 4-port KVM switch
• foot pads
• universal power adapter (NA/EU/UK/AU)
• instruction manual

Note:

While both DVI-I (analog) and DVI-D (digital) are supported by the KVM, source PCs must output the same signal for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. If necessary, please contact technical support for assistance identifying your source.
