SV231DDVDUA, Startech 2 Port Dual Monitor USB DVI KVM Switch - 3.5 mm Stereo

Note

This KVM switch supports DVI-D (digital) signaling only and it is recommended wherever possible to use DVI-D cabling across all PC to KVM and KVM to Console connections to ensure proper function.

SV231DDVDUA KVM Switch DVI and VGA

The SV231DDVDUA 2-port Dual Monitor KVM Switch (DVI+VGA) offers a complete multimedia switching solution, letting users control two Dual Display computers using a single USB mouse and keyboard peripheral set.

With support for high-resolution video interfaces, this dual view KVM switch provides one VGA (analog) and one DVI-I port per computer connection, as well as audio switching capability between connected computers.

Delivering versatility for virtually any application, the DVI/VGA KVM switch features an integrated 2-port USB hub that allows connected USB 2.0 peripherals to be shared between connected computers, eliminating the need to purchase duplicate peripherals.

Suitable for any workspace, the dual monitor KVM switch offers a compact desktop KVM design and features a rugged metal chassis that helps ensure durable performance.

This product is backed by a Startech.com 3-year warranty with free lifetime technical support.

Features & Benefits

• Direct channel selection and operation using front panel push-button or keyboard hotkeys
• Supports a maximum resolution of 1920 x 1200
• Independent or simultaneous audio switching
• OS independent (no drivers or software required)
• Full support for plug-n-play peripherals
• Rugged, all-metal chassis for use in harsh environments
• Status LED display for easy port status monitoring
• USB style keyboard and mouse, plus two other USB peripherals can be shared between up to two computers
• Tone indicator for computer switching
• Selectable time intervals for auto scan
• Rear function key to adjust video strength
• HDCP compliant
• Support DDC2B emulation and EDID pass through, which allows the display adapter to recognize and auto configure the display resolution to match the display capabilities
• Supports Dual Monitor/Flat Panel Displays [1 x DVI + 1 x VGA]
• High-resolution DVI and VGA ports support almost any dual display scenario
even with one DVI + VGA PC, and one dual DVI PC, an adapter can be used with this KVM to support your configuration
• Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals eliminating the expense of duplicate devices
• Absolutely no software or drivers required providing a completely OS independent KVM solution

Applications

• Perfect solution for desktops, workstations and servers with both VGA and DVI-digital ports, allowing a user to take advantage of dual monitor configurations
• Ideal for financial/banking industries, graphic designers, engineers, multi-media designers, and industries using CAD/CAM , where high resolution dual monitor units are needed
• Suitable for use in environments with electromagnetic interference, based on sturdy metal design
• Versatile support for setups where one machine is DVI & VGA, and the other is VGA & VGA (with available adapters)

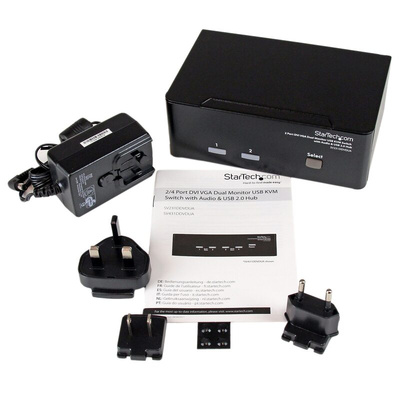

What’s in the package?

• 2-port KVM switch
• Foot pads
• Universal power adapter (NA/EU/UK/AU)
• Instruction manual

FAQs

Can I use any mouse or keyboard with the KVM Switch?
It will depend on the type of mouse or keyboard used. It is advised by the manufacturers to use standard wired 104 key keyboards and a standard wired mouse that does not have additional features. This includes wireless, gaming and Apple keyboards.
