SV831DUSBUK, StarTech.com 8 Port USB VGA KVM Switch, 1920 x 1440 Maximum Resolution

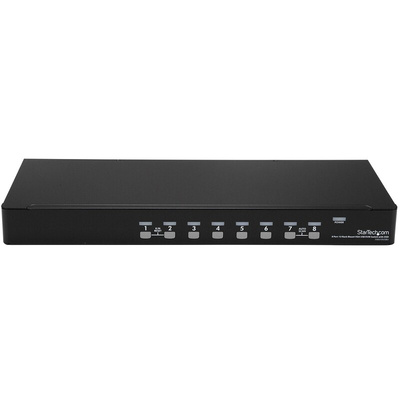

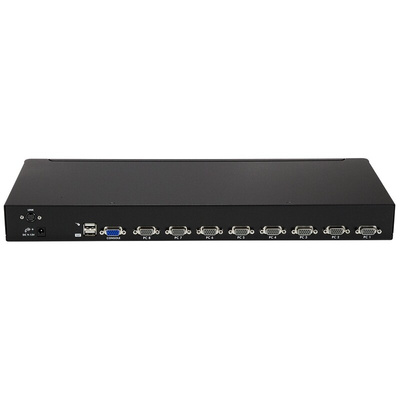

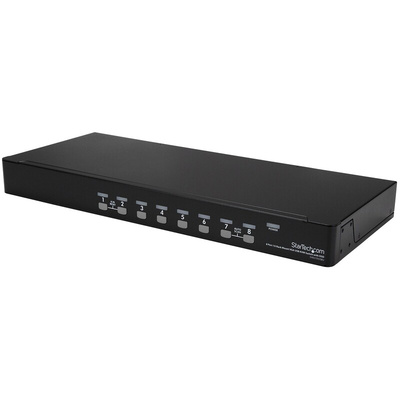

SV831DUSBUK VGA KVM Switch

The SV831DUSBUK 8-Port Rack Mount USB KVM Switch Kit offers a well-appointed KVM switch that includes all of the cables and accessories required to connect to 8 servers or PCs right out of the box, making setup convenient and simple.

The USB KVM delivers a dependable computer management tool that allows you to control up to 8 USB-connected computers from a single keyboard, mouse and display, providing maximum control through hotkey command-based switching or front panel push-buttons, with the added configurability and convenience of an On-Screen Display.
A suitable addition to server room operations, the 8-port switch can be rackmounted into 1U of cabinet space and can be cascaded with multiple KVM switches to enable control of up to 64 computers from this single switch.

This product is backed by a Startech.com 3-year warranty with free lifetime technical support.

Features & Benefits

• Package includes 8x 6ft USB VGA KVM cables
• USB Keyboard and Mouse combo/wireless setups supported on 1 USB connection
• Rugged, all metal 1U rackmount chassis for use in harsh environments and server cabinets
• OSD security option allows selected KVM ports to be password-protected from unauthorized use
• Auto-scan function automatically switches between connected PCs sequentially
• Cascade configuration expands system capability
• Hotkey functions allow easy computer access
• Identifies and selects computers by the names assigned
• Plug-and-play system configuration
• For simple setup, the USB/VGA KVM cables to connect all 8 ports to servers and PCs are included in the box
• Maximum compatibility with USB keyboard and mouse combos, and wireless setups
unlike most KVMs, this unique model extracts the keyboard strokes from the USB connection ensuring your setup will work flawlessly
• Rugged rack mountable metal chassis allows for versatility and durability in almost any environment

Applications

• Useful in Software QA labs where testing is being done across multiple platforms
• Great for PC test/burn-in computer control, avoiding the cost of buying additional peripherals
• Central control for multiple systems in a Datacentre
• Effectively manage your server farm from a single console with cascaded units
• Manufacturing line computer control and management

What’s in the package?

• 8 Port USB KVM Switch
• Mounting Brackets
• 6ft 2-in-1 USB VGA KVM cables
• Universal Power Adapter (NA/EU/UK/AU)
• User Manual

Instruction Manual

SV831DUSBUK Datasheet
