SV831DUSBGB, StarTech.com 8 Port USB VGA KVM Switch, 1920 x 1440 Maximum Resolution

SV831DUSBGB VGA KVM Switch

The SV831DUSBGB 8 Port 1U Rack Mount USB PS/2 KVM Switch with OSD offers a dependable computer management tool that allows you to control up to 8 USB or PS/2 connected computers from a single keyboard, mouse and monitor.
The KVM switch offers maximum control, allowing you to switch computers using hotkey commands or front panel push-buttons, and offers the added convenience of an On Screen Display to quickly access configuration options.

A suitable addition to server room operations, the 8 port switch can be rack-mounted into 1U of cabinet space, and can be cascaded with multiple KVM switches to deliver control of up to 56 computers from this single switch.
This high quality USB PS/2 KVM Switch is TAA compliant and backed by a StarTech.com 3-year warranty with free lifetime technical support.

Features & Benefits

• Connect USB and PS/2 based computer systems
• OS independent – No software or drivers required
• Auto-scan function cycles through computers sequentially
• Cascade configuration expands system capability
• Front panel push-buttons and Hot-key functions allow for easy switching
• On Screen Display (OSD) supports naming connected computers
• USB & PS2 console interfaces for keyboard and mouse
• OSD security option allows selected PCs to be password protected from unauthorized use
• Rugged, all-metal 1U chassis for use in harsh environments and space-saving cabinets
• Cascade configuration adds scalability and offers support for control of up to 56 computers
• Rugged, solid steel rack-mountable case offers durability even in harsh environments
• Absolutely no software or drivers required providing a completely OS independent KVM solution

Applications

• Add single console administration to your Co-location/ISP facility saving you time and money
• Create a scalable, streamlined access solution in your Datacentre or Server Farm
• Perfect for manufacturing line computer control, simplifying access to multiple systems
• Great for PC test/burn-in computer control saving the desk space required for multiple monitors, keyboards and mice

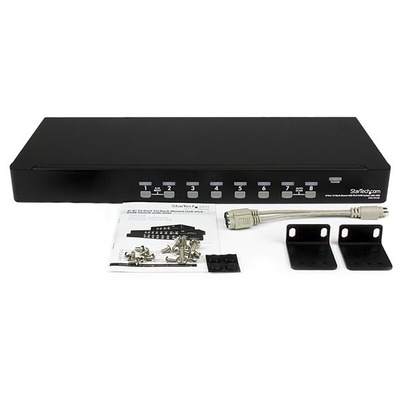

What’s in the package?

• StarView 8 Port KVM Switch
• Mounting Brackets(16/8 port only)
• PS/2 keyboard and mouse Y cable (16/8 port only)
• EU Power Adapter
• UK Power Adapter
• Foot pads
• User Manual

FAQs

Does the KVM console support audio?
No

Can I use any mouse or keyboard with the KVM Switch?
It will depend on the type of mouse or keyboard used. It is advised by the manufacturers to use standard wired 104 key keyboards and a standard wired mouse that does not have additional features. This includes wireless, gaming and Apple keyboards.
