ST122LE, StarTech.com 2 Port 1 Input 2 Output VGA Splitter 2048 x 1536

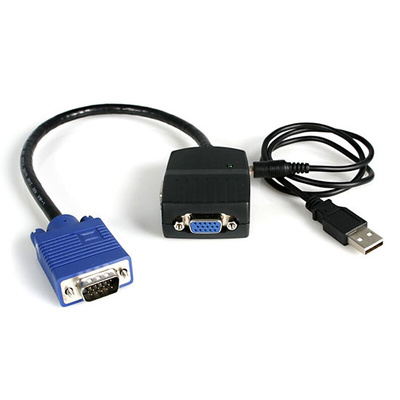

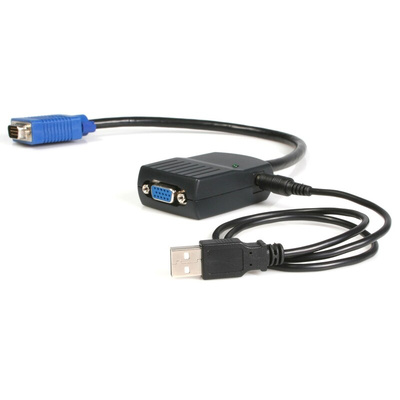

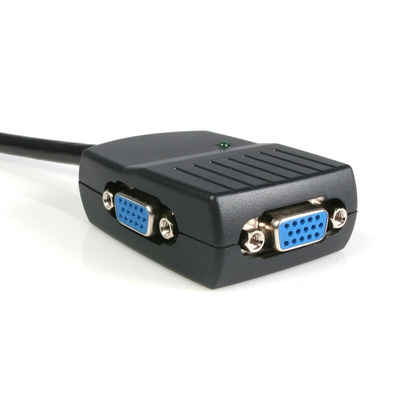

ST122LE 2 Port VGA Video Splitter

This 2-Port VGA Video Splitter allows a computer to display VGA video on two monitors simultaneously.

Perfect for classrooms, tradeshows, or any environment requiring high quality video on several monitors, the ST122LE VGA splitter supports displays with up to 300 MHz of bandwidth and up to 2048x1536 resolution. Plus, to simplify placement of your VGA displays, the splitter features a built-in booster circuit that allows you to locate VGA monitors up to 200 ft away from your system, and can be powered through a USB connection to the host computer, eliminating the need to find an available power outlet.

Application Diagram

The ST122LE VGA Splitter supports easy plug and play installation, and is backed by StarTech.com's 2-year warranty and FREE lifetime tech support.

Features & Benefits

• Supports resolutions up to 2048 x 1536 @60Hz
• USB-Powered
• Our most compact VGA splitter
• 300 MHz video bandwidth
• Integrated signal amplifier boosts your connection range to 200 feet (60 meters)
• Supports DDC, DDC2, DDC2B (For video out port 1)
• USB-Powered VGA video splitter, no bulky external power adapter required
• Multiple screens let you communicate your message more effectively to large audiences with greater impact
• Integrated signal amplifier boosts your connection range to 200 feet (60 meters)

Applications

• Use for in-store product merchandising in retail environments to give your advertisements greater visibility
• Display travel schedules and alerts in airports, bus terminals and train stations
• Create engaging multimedia presentations for demonstration in lecture halls and classrooms
• Get your message across multiple displays for trade-shows or information booths/kiosks
• Quick and easy solution to split a video signal in an auditorium or house of worship

What’s in the package?

• Video Splitter
• USB to DC power adapter
• User Manual

FAQs

The image quality on some or all of my displays does not look very good through my video splitter. What do I do?

You might encounter resolution issues when you use a video splitter. This can occur because the information and resolution on one display are being copied and sent to each of the additional displays. You should make sure that all of the displays that you are using can support the output resolution.
