ST122PROGB, StarTech.com 2 Port 1 Input 2 Output VGA Splitter 2048 x 1536

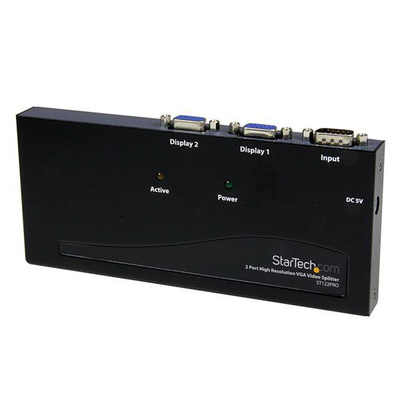

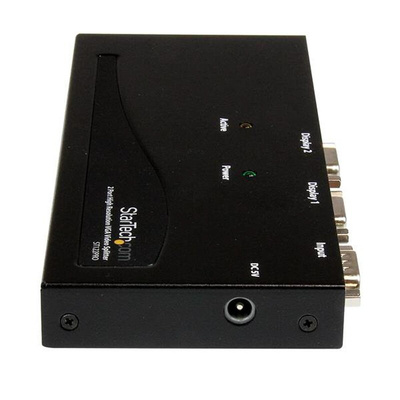

ST122PROGB VGA Video Splitter

The ST122PROGB 2 Port High Resolution VGA Video Splitter - 350 MHz splits a VGA video source signal to 2 monitors or projectors simultaneously - a professional grade solution that is perfect for presentations, classrooms, tradeshows, or in-store displays, where the highest quality video on several monitors is needed. This High Resolution VGA Splitter supports monitors with up to 350MHz of video bandwidth and display resolutions up to 2048x1536 @80Hz. For added versatility, the VGA splitter features an integrated booster circuit that allows the video signal to be extended up to 210 feet (65 meters), enabling you to situate your displays in the most convenient location based on your application. This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
Male to Female VGA extension cable required (MXT101HQ)

Features & Benefits

• Allows 1 VGA video source to simultaneously display on 2 different monitors
• Supports resolutions up to 2048x1536 @ 80Hz
• High video bandwidth (350 MHz)
• Maximum VGA cable length of 210ft (65m)
• Built-in video amplifier boosts the signal to allow a cable length of up to 210 ft or 65m
• Uses standard monitor extension cables (See Accessories)
• Built-in video amplifier boosts the signal to allow a cable length of up to 210 ft or 65m
• DDC compatible
• An integrated signal amplifier boosts your connection range to 210 feet (65 meters)
• High quality construction and high resolution support maintains signal strength for crisp, sharp imaging
• Multiple screens let you broadcast your message to large audiences with greater impact

Applications

• Create engaging multimedia presentations for demonstration in lecture halls and classrooms
• Display travel schedules and alerts in airports, bus terminals and train stations etc.
• Create eye-catching displays in trade-shows and auditoriums
• Use for in-store product merchandising in retail environments to give your advertisements greater visibility
• Get your message across multiple displays for trade-shows or information booths/kiosks
• Quick and easy solution to split a video signal in an auditorium or house of worship

What’s in the package?

• 2 Port High Res. Video Splitter
• Rubber Feet
• Power Adapter
• Instruction Manual
