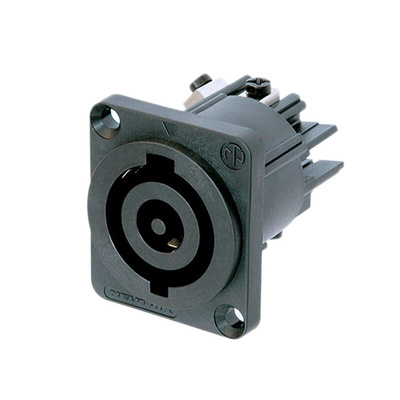

RSNAC3MP-HC, Neutrik Mains Connector, 32A, Panel Mount, 250 V

Neutrik Power Connector

The Neutrik female power connector has a current rating of 32A and voltage rating of 250VAC. It is black and has a polyamide body. This connector is a straight forward locking system for a quick and secure connection that also ensures no unintentional unplugging. It is often used in audio and lighting applications.

Features and Benefits

Panel mount
Contact material of bronze
250VAC, 32A single-phase (for ambient temperatures up to 35°C)
Secure locking system
Robust construction
Premating contact for protective earth
Locking single phase AC appliance coupler
High current capacity (32A rated)
Fast and easy locking system
Excellent cable handling and protection
Premating contact for protective earth
Locking system to prevent unintentional disengagement
Cable O. D. ranges between 8mm and 20mm
Wiring with screw-type terminals for wires between 2.5mm2 and 6.0mm2

Certifications

IP2X rated
EN/IEC61984
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Datasheet NAC3MP-HC
