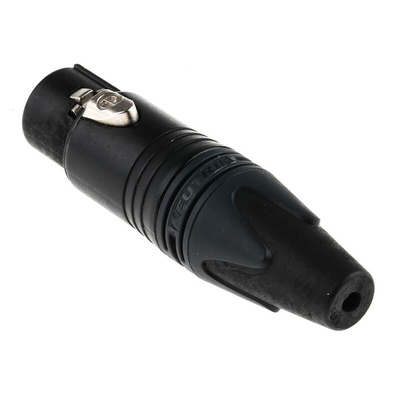

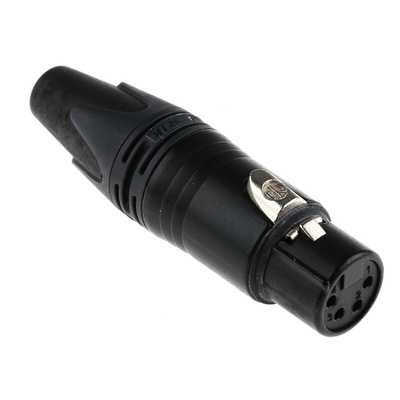

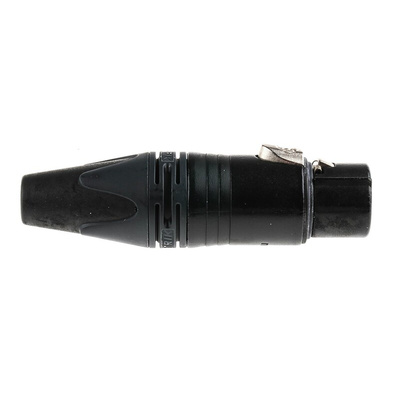

NC4FXX-B, Neutrik Cable Mount XLR Connector, Female, 50 V, 4 Way, Gold Plating, Разъем

Neutrik XLR Connector

The Neutrik 4-contacts female XLR connector has a voltage rating of 50V and a current rating of 10A. This connector has a gold over nickel plating. It offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
Warning:
Not to be used as mains connector

Features and Benefits

Additional ground spring contacts for better shell ground continuity
Black in colour
Boot with polyurethane gland gives high protection to cable bending stresses
Branded with a unique hologram guarantees genuine and authentic Neutrik product
Coloured rings and boots available for coding or identification
Female connector with an improved solid metal latch which is larger and easier to handle
Female contact incorporates a solder barrier to prevent solder running into the contact mating area
Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
Operating temperature ranging between -30°C and 80°C
Sleek and ergonomic design, valuable and handy
Unique cage design of female contact for low contact resistance and high integrity

Certifications

UL approved

Datasheet NC4FXX-B
