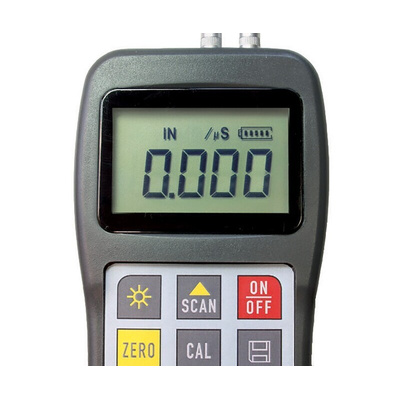

Sauter Ultrasonic Thickness Gauge

The Sauter ultrasonic thickness gauge has a maximum measuring range of 80mm. This digital ultrasonic thickness gauge is based on the same operating principles as SONAR. This instrument is capable of measuring the thickness of various materials with high accuracy. It is suitable for a variety of metallic and non-metallic materials.

Features and Benefits

Accuracy of 1%
Resolution of 0.1mm
LCD type display
External sensor for difficult-to-access measuring points
AUTO-OFF function to preserve batteries
Selectable measuring units like mm, inch
Digital material thickness measurement device with RS 232C interface
With an external measuring head with 1m cable, for easy access to the measurement point
Measurement range switchable between mm and inches
With auto-power OFF function
Measuring head is 10 mm
Frequency is 5MHz
Sound velocity ranges between 1000m/s and 9999m/s
Data memory for 20 files with 100 measured values each

Applications

Construction engineering
Paint shops
Renovation and restoration projects
Automotive

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Technical data sheet

Instruction manual

product brochure
