1662062, ABL Sursum Grey 1 Gang Plug Socket, 2 Poles, NBN C61-112 Belgian, NF C61-314 French

French / Belgian Standard Type-E CEE7/5 Panel Socket Outlets

Durable thermoplastic Type E CEE 7/5 socket outlets, for use with French Type E CEE 7/6 2-pin plus earth plugs, with earth contact in accordance with French and Belgian standards. The flange mounting socket is manufactured to NBN C61-112 Belgian standard and NF C61-314 French standard and is rated at 16A/250 Vac. This panel socket is shuttered for safety and also features a spring loaded cover lid. This Type E French socket is IP54 splash proof (when the lid is closed).

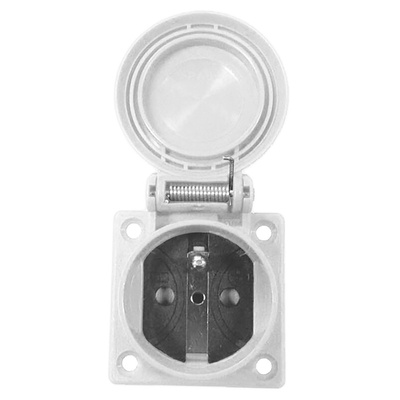

French / Belgian CEE 7/5 panel mounted shuttered socket outlet
Exposed male earth pin
Constructed from thermoplastic
Flush panel mounting
Spring loaded socket cover lid
IP54 rated when not in use and the cover is closed
Four screw flange fastening

European CEE7 Sockets - DIN49440

Datasheet -1662062
