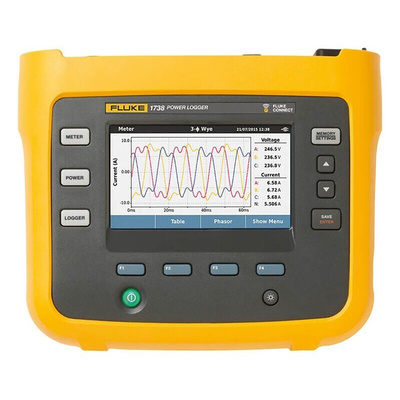

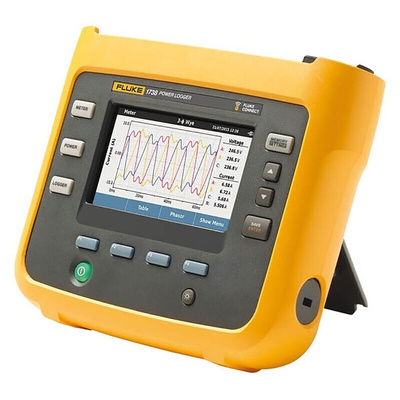

FLUKE-1738/B, Fluke 1738 Energy Monitor & Logger for Current, Current Harmonic, Frequency, TDD, THD Current, THD Voltage, Unbalance,, Анализатор

Fluke 3 phase Energy Monitors

The Fluke 3-phase power logger is ideal for conducting basic energy and power quality studies. The Fluke 1738 is built with Fluke Connect mobile app and desktop software compatibility gives you the data you need to make critical power quality and energy decisions in real-time. Its optimized user interface, flexible current probes and an intelligent measurement verification function allows you to reduce measurement errors by digitally verifying and correcting common connection errors makes the setup easier than ever and reduces measurement uncertainty.
Note:
Probes available separately
Supplied with
Power logger advanced version, power supply, voltage test leads, alligator clips (4x), soft case, Energy Analyse Plus software, Wi-Fi adapter, line cords, colour coding set and documentation on USB flash drive.
Note
CRITICAL SAFETY ALERT - PLEASE READ! Fluke has determined that certain improper use of the test lead set, 3PHVL-1730 or 3PHVL-1735-5M 'Voltage Test Lead, 3-phase + N', included with the 173x Series, 174x Series Power Quality Loggers and 3540FC Power Monitor, may potentially expose users to hazardous conditions, posing the risk of serious personal injury or death.

Features and Benefits

Measures all the three phases and neutral with included 4 flexible current probes
Comprehensive logging: More than 20 separate logging sessions can be stored on the instruments
Capture dips, swells, and inrush currents: includes event waveform snapshot and high resolution RMS profile, along with the date, timestamp and severity to help pinpoint potential root causes of power quality issues.
Bright, colour touch screen: Performs convenient in-the-field analysis and data checks with full graphical display
Optimized user interface: Captures the right data every time with quick, guided, graphical setup and reduce uncertainty about your connections with the intelligent verification function
Colour LCD display: 4.3in active matrix TFT, 480 pixels x 272 pixels, resistive touch pane
The voltage range is up to 1000V
Current ranges between 4A and 6000A
Frequency ranges between 42.5Hz and 69Hz
Comprehensive logging
Power instrument directly from the measured circuit

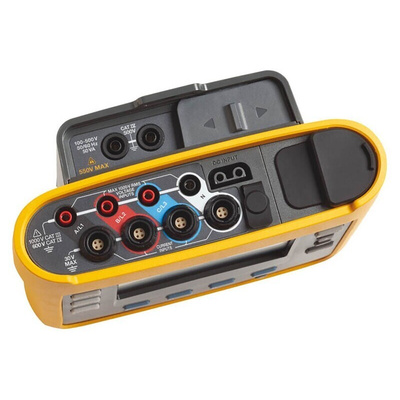

Interfaces: USB-A, Wi-Fi, Bluetooth, USB-mini
Line cord: EU, US, UK, AU, BR

Applications

Load studies: verify electrical system capacity before adding loads
Energy assessments: quantify energy consumption before, and after improvements, to justify energy saving devices
Harmonics measurements: uncover harmonic issues that can damage or disrupt critical equipment
Voltage and current event capture: monitor for dips, swells and inrush currents that cause false resets or nuisance circuit breaker tripping

Certifications

CE
CSA certified
IP50 rated
IEC 61000-4-7: Class 1
IEEE 519
IEC 61000-4-30 Class S
IEC62586-1
IEEE 1459
EN 50160
1000 V CAT III/600 V CAT IV safety rated

Fluke 1736 and 1738 Three-Phase Power Loggers

SAFETY ALERT NOTIFICATION

Contains SVHC - 1,3-propanesultone - CAS No. 1120-71-4
