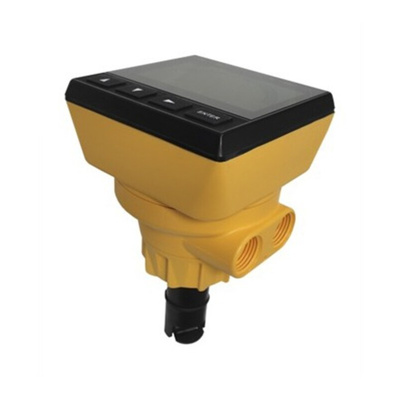

159001733, Georg Fischer SmartPro Series Signet Flow Integral System Transmitter

9010065
Номер производителя: 159001733Производитель: Georg Fischer
Цена за шт.
424992.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Paddlewheel Flow Sensor with Integrated Display

This Flow sensor integrates a Georg Fischer Signet 9900 single channel transmitter with a paddle wheel flow sensor and tough PP field mount casing. The 9900 transmitter features a back lit display with large characters giving up to 4 times the viewing distance of standard screens. The screen can show primary and secondary measurements simultaneously and a dial digital bar graph for quick indication. Set-up can be simple by using default values for fast programming or tailored for more specific requirements using the adjustable maximum and minimum settings and unit-of-measure selection.

Features and Benefits

Warning LED indicator
Optional PC COMM configuration tool
Optional H COMM configuration tool
Selectable error mode for current outputs, 3.6 mA or 22 mA
Easy to read dial-type digital bar graph
User-friendly interface consistent with legacy Signet ProPoint® and ProcessPro® devices
4 to 20 mA input (with optional 8058 Signal Converter)
Field upgradable relays
Factory reset option
Custom 13-character channel labelling
Large auto-sensing backlit display with “at a glance” visibility

Applications

The Signet 9900 transmitter is suitable for a wide range of applications including

Metal and Plastic Finishing
Chemical Manufacturing/Addition
Deionization
Reverse Osmosis
Fume Scrubbers
Wastewater Treatment
Cooling Towers
Media Filtration

Техническая спецификация
pdfDatasheet
Диапазон диаметра трубы:
0.5 → 4 in
Материал:
Полипропилен
Напряжение питания:
24 В пост. тока
Номинал тока:
4 → 20 мА
Серия:
SmartPro
Тип девайса:
Signet Flow Integral System
