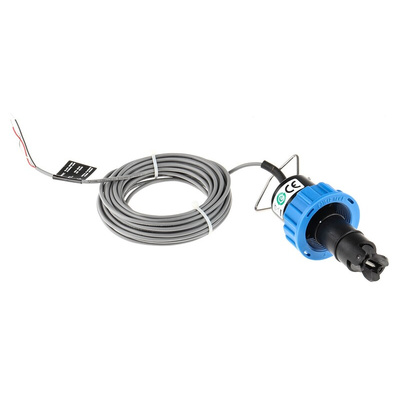

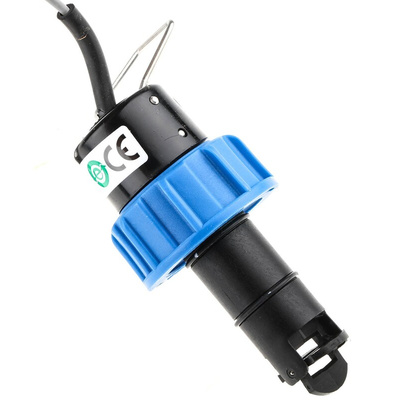

198840143, Georg Fischer 2536 Rotor-X Series Paddlewheel Flow Sensor for Liquid, 0.1 m/s Min, 6 m/s Max

Georg Fischer Flow Sensor

The Georg Fischer 2536 Rotor-X series paddlewheel flow sensor sense liquid flow rate from 0.1m/s to 6m/s. Its simple, low maintenance construction is chemically compatible with a broad range of liquids (see the datasheet). The rotor-x paddle wheel can be installed into a wide range of pipe sizes from DN15 to DN 900 by using signet plastic fittings.

Features and Benefits

Pipe diameter ranges between 0.5in to 4.0 in
Maximum operating pressure is 12.5bar
Maximum operating temperature is 85°C

Easy to replace rotor
Wide turndown ratio of 66:1
High resolution and noise immunity
Open-collector output
Chemically resistant materials
Pipe size 0.5in to 4.0in

Applications

Rotor-x paddle wheel sensors are suitable for a wide range of applications
Chemical production
Liquid delivery systems
Pump protection
Filtration systems
Pure water production
Not suitable for gases
Scrubber systems
Water monitoring

Certifications

CE certified
FCC approved
NSF (3-2536-PX version only) approved

Datasheet
