DIS82.IXHKIMACX, Vega External Dislay Unit For Use With Level Transmitter

Vega Display and Adjustment Unit

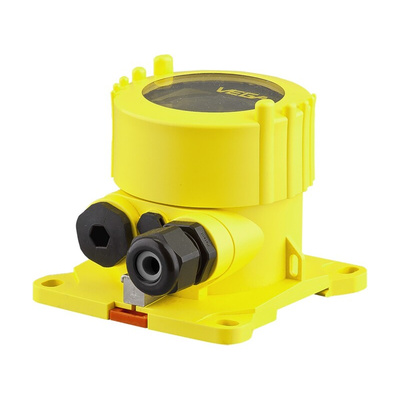

The Vega VEGADIS 82 series is an External display and adjustment unit suitable for display indicator that can be used with any 4 - 20mA or HART level measurement transmitter. The display unit can be wired into a 4mA to 20mA circuit from any location and can be used to carry out adjustments to the sensor using the HART protocol. It features a clear and easy to read backlit display. This device can be mounted directly to the wall, rails or tubing and requires no external power source.

Features and Benefits

Wall mount
Combined measured value indication and sensor adjustment (HART)
Clear menus with text and with graphic support (PLICSCOM)
Simple adjustment via 4 keys and clearly structured program guide
Good readability as the display can be rotated in 90° steps for optimal positioning and has optional integrated backlighting
Time and cost savings during the parameter adjustment on site with PLICSCOM
Reliable and simple adjustment through clear text indication with graphic support

Applications

Wood chip silo level measurement
