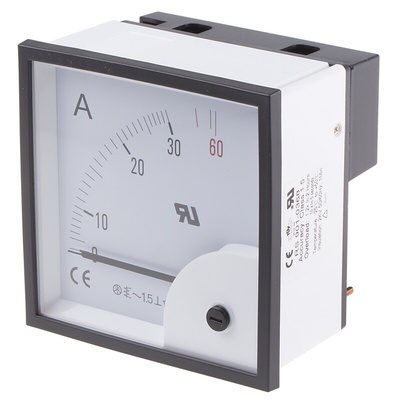

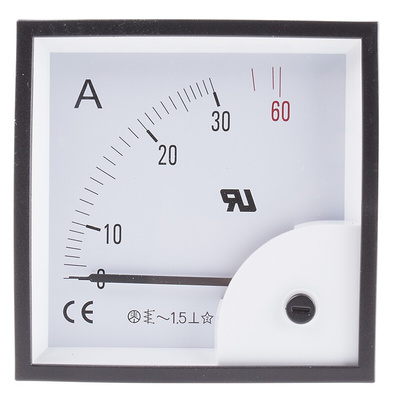

RS PRO Analogue Panel Ammeter 30A AC, 92mm x 92mm, ±1.5 % Moving Iron, Амперметр

RS PRO Moving Iron Analogue Panel Ammeter (92 x 92mm)

An analogue ammeter (or current meter) for the measurement of circuit current intended for panel mounting in a cut out of 92 x 92mm.
A moving iron type ammeter consisting of an iron core surrounded by a coil. As the AC current flows through the coil it creates a magnetic field moving the needle on the ammeter.
The panel ammeter is reliable accurate to within 1.5% and is rated for AC current from 0 to 60 A. Constructed from tough and hardwearing Polycarbonate and ABS rated to UL 94V-0 dictating that in the event of a fire the flammable parts of the ammeter will not burn for more than 10 secs protecting equipment and premises.

Features and Benefits

Analogue ammeter
Panel mount
92 x 92 cut out
Accurate to withing 1.5%
Measurement range of 0 to 60A
Polycarbonate and ABS construction
Rated to UL 94V-0

Standards and Approvals: VDE, E327849; IEC 51; BS 89; DIN 43780; RoHS Compliant; CE; TUV; UL
