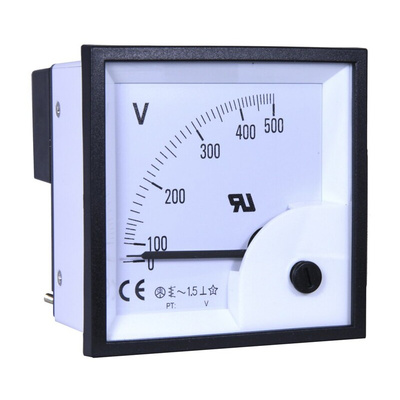

RS PRO Analogue Voltmeter AC ±1.5 %, 68 x 68 mm, Вольтметр

RS PRO Analogue Voltmeter, AC Current, ±1.5% Meter Accuracy, 68 mm x 68 mm

This voltmeter from RS PRO measures voltage levels in an electrical circuit. It's suited to alternating current (AC) and has an analogue pointer that moves along a scale proportional to the voltage level. A measuring instrument like this is frequently used to test how much voltage is passing between two points and check the power in an electrical circuit.
The unit has a high accuracy of ±1.5% for reliable voltage readings. Its ABS (acrylonitrile butadiene styrene) and polycarbonate enclosure is robust for enhanced protection. It also has good resistance to chemicals and everyday wear-and-tear which gives the voltmeter a long service life.
Use this analogue instrument to test voltages in generators or fixed machinery. It meets UL (Underwriters' Laboratories) 94 V-0 flame retardancy standards which means it won't catch alight in the event of a fire.

Features and Benefits

• Compliances include CE (Conformité Européenne), RoHS (Restriction of Hazardous Substances), TUV (German Technical Inspection Association), UL (Underwriters' Laboratories) E327849 approvals
• AC current type
• Cutout height of 68 mm
• Cutout width of 68 mm
• Depth of 36.5 mm
• Minimum displayed value of 0 V
• Maximum displayed value of 500 V
• Measurement range of 0 to 500 V
• Meter accuracy of ±1.5%
• Voltmeter meter type
• Minimum temperature of -25°C
• Maximum temperature of +50°C
• RS PRO series
