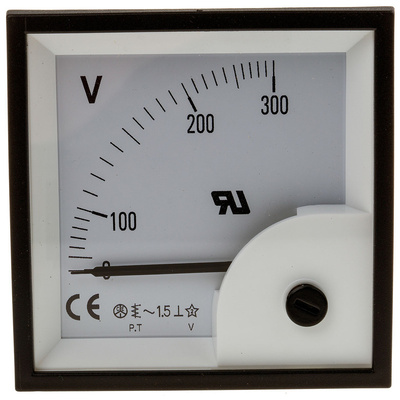

RS PRO Analogue Voltmeter AC ±1.5 %, 68 x 68 mm, Вольтметр

RS PRO Analogue Voltmeter AC ±1.5 %, 68 x 68 mm

Use this voltmeter from RS PRO to measure the voltage levels of your electrical circuits. It's designed for checking power in electrical circuits and testing how much voltage is passing between two points. It comes with an analogue point and has a high accuracy of ±1.5%.

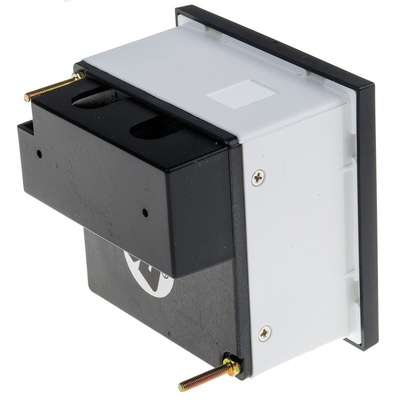

The voltmeter comes fitted with a robust ABS (acrylonitrile butadiene styrene) and polycarbonate enclosure for enhanced protection, reducing the risk of damage during use. It also has good resistance to chemicals and everyday wear-and-tear, so it will stay in good working condition for a long time. It meets UL (Underwriters' Laboratories) 94 V-0 flame retardancy standards, meaning it won't ignite in the event of a fire.


This voltmeter is compatible with alternating current (AC). Analogue measuring instruments of this kind are generally used to test voltages in generators or fixed machinery.

Features and Benefits

• Compliances include CE (Conformité Européenne), RoHS (Restriction of Hazardous Substances), TUV (German Technical Inspection Association), UL (Underwriters' Laboratories) E327849 approvals


• AC current type


• Cutout height of 68 mm


• Cutout width of 68 mm


• Depth of 36.5 mm


• Minimum displayed value of 0 V


• Maximum displayed value of 300 V


• Measurement range of 0 to 300 V


• Meter accuracy of ±1.5%


• Voltmeter meter type


• Minimum operating temperature of -25°C


• Maximum operating temperature of +50°C
