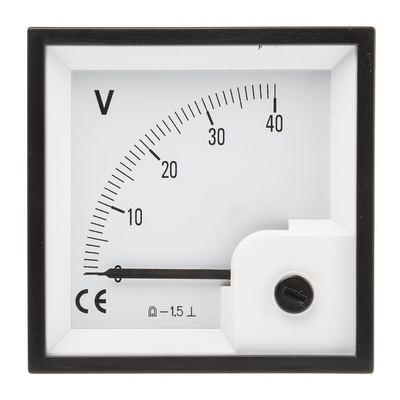

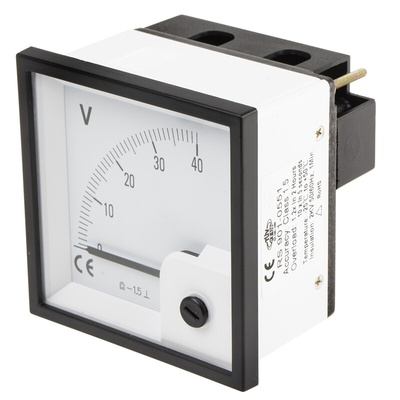

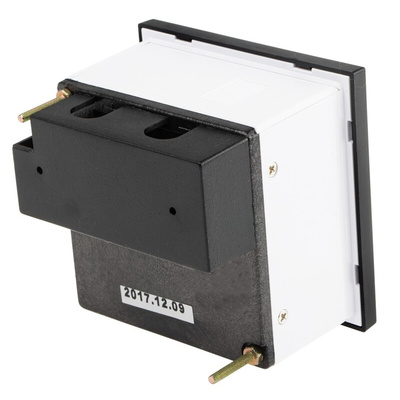

RS PRO Analogue Voltmeter DC ±1.5 %, 68 x 68 mm, Вольтметр

RS PRO Analogue Voltmeter DC Current, ±1.5% Meter Accuracy, 68 mm x 68 mm

Use this RS PRO voltmeter to measure or detect a drop in voltage in an electrical circuit. It's made to test direct current (DC) and has a needle display that's highly sensitive for good levels of accuracy. Testing units like this are widely used in industrial applications to check the electrical integrity of circuits and machinery.
The small dimensions of this compact meter mean it will save space on your control panel. It features an acrylonitrile butadiene styrene (ABS) and polycarbonate housing for high levels of protection from abrasive substances, shocks and bumps. A wide operating temperature range of -25°C to +50°C makes it versatile and useful in a broad range of operating conditions.
Choose a voltmeter like this for home or factory use. It meets German Technical Inspection Association (TUV) safety standards and its case and terminal material are Underwriters' Laboratories (UL) E327849 approved as flame-retardant.

Features and Benefits

• DC current type
• Cutout size of 68 (H) x 68 (W) x 36.5 mm (D)
• Maximum operating temperature of +50°C
• Minimum operating temperature of -25°C
• Measurement range of 0 to 40 V
• Meter accuracy of ±15%
• Voltmeter meter type
• RS PRO series
• European CE (Conformité Européenne) compliant
• Restriction of Hazardous Substances (RoHS) compliant
• Technischer Überwachungsverein (TUV), or German Technical Inspection Association certified
• Underwriters' Laboratories (UL) E327849 approvals

Installation Instruction Manual

RS Pro Datasheet
