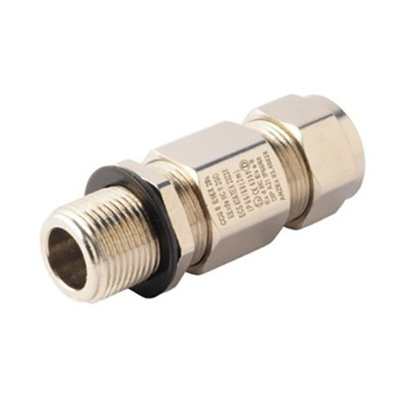

50210, Moflash E1EX Series Metallic Stainless Steel Cable Gland, M20 Thread, 9mm Min, 15mm Max, IP66, IP68, Кабельный ввод

E1EX Captive Component Gland for Explosive Atmospheres

The E1EX Captive Component Gland is designed for use with steel wire and aluminium armoured cable in hazardous areas with a potentially explosive atmosphere. Equipment protection levels: Ex d IIC Gb, Ex e IIC Gb, Ex nR IIC Gc, Ex tb IIIC Db II 2G, II 2D, II 3G.

For indoor, outdoor and Group II hazardous areas
Two part handling, no loose parts
Captive Cone and Cone Ring provide an armour clamp and earth bond for steel wire armour and aluminium armour
Patented disconnect system that allows inspection of armour clamp and inner seal after assembly
Factory fitted with a specially formulated elastomeric seal for built-in safety, seals on the inner sheath of the cable to IP66 / IP68
Precision manufactured from high quality brass (marine grade electroless nickel plated) or stainless steel
Complete with a sealing gasket and end cap safety gauge for correct gland selection

Approvals

ATEX, IECEx, INMETRO, SANS/IEC.

Datasheet

Cable Gland Selection Chart
