LED-MINI-02-01, Moflash LED-MINI Series Amber Steady Effect Beacon Unit, 12 → 24 V dc, LED Bulb, DC, IP54

Moflash LED-MINI Modular Signal Tower

The LED-MINI modular signal towers are ideally suited for status indication in light commercial signalling applications where a low cost, compact and local signal is required. The beacons have a continuous/static light (single stage alarm), so once the beacon is energised the LED’s will stay permanently on.
An advantage of this type of operation is that it can be controlled via a remote source such as a control panel or plc, giving the beacon greater flexibility by offering a flashing second stage alarm.
The LED-MINI is a modular system that is easily assembled. The colour beacons have quick fix terminations that simply push into the male terminals in the module below to make the connection.

Features and Benefits

• Continuously rated
• LED long life
• Low current consumption
• Economical
• 360° light output around the vertical axis
• UV stable polycarbonate lens and base
• IP54 protection
• RoHS compliant

Note

There are three base mounting options available: a mounting foot & 100mm pole (stock no. 901-0738); a mounting bracket & 100mm pole (stock no. 901-0747); or mounting foot, top cap & 100mm pole (stock no. 901-0740). Each base is supplied with a 1 metre flying lead.

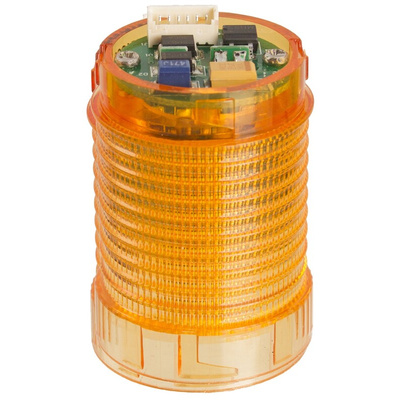

Moflash Amber LED Beacon, Steady Light Effect, 12 to 24V DC - LED-MINI Series - LED-MINI-02-01

This amber beacon from Moflash provides a highly visible warning signal. It contains eight LED bulbs to provide a bright light that can be seen in most environments. Its steady light effect makes it a good choice for signalling ongoing conditions. The device's polycarbonate lens material is UV-stable to resist discolouration and warping in outdoor environments.

Features & Benefits

• IP54 rating means the beacon is protected against limited amounts of dust and water splashes
• Low current consumption between 45 and 80mA for energy-efficient operation
• Compact dimensions of 30 (diameter) x 42mm (height) to minimise bulk on your signal tower

Applications

• Construction traffic
• Automated assembly lines
• Automotive industry

How do I attach this beacon to another module?

To easily create a complete signalling system, you can attach this beacon to another module in the LED-MINI series by simply pushing it into the male terminals of the module below it.
