A8BM-115AC, Moflash A8BM Series Surface Mount Siren, 115 V ac, 108dB at 1 m, IP66, AC, Single-Tone

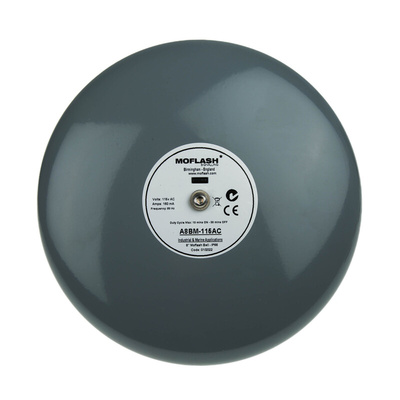

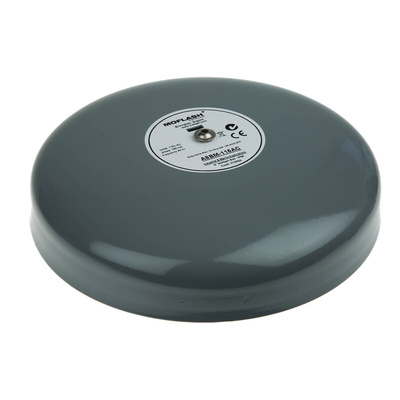

Moflash A6BM / A8BM Solenoid Driven Bell

The Moflash A6BM and A8BM solenoid driven bells have been designed and manufactured to withstand harsh environmental conditions. They are ideally suited to heavy duty industrial & marine applications where rugged construction and a high weatherproof classification is required. The bells produce a rich and clear traditional sound that is free from mechanical clatter. Up to 4 x M20 cabling entry knockouts, two from above and one on either side allow for loop in/loop out cabling applications. The A6BM and A8BM caters for 4 x 2.5mm² termination inside the enclosure.

3 point fix with adjustment slots
Dustproof and weatherproof
Loop in & loop out cabling option
IP66 protection
106 dB or 108 dB
Duty cycle: max 10 mins ON, 30 mins OFF
AC supply 50/60 Hz
UV stable polypropelene back box
Zinc powder coated steel gong
RoHS compliant

Approvals

IEC 60533:1999 approved for installation on ships.
AEN 50130-4:2011 approved for Fire/Security.

Moflash Single-Tone Siren, 115V AC, 106dB - A8BM Series - A8BM-115AC

Alert personnel to a hazard with this single-tone siren from Moflash. It uses a solenoid wire to create a magnetised force that activates the sound, reducing the risk of mechanical failure thanks to its lack of moving parts. Its polypropylene back box can withstand exposure to UV (ultraviolet) rays, making it suitable for outdoor use. The siren has an IP66 (ingress protection) rating, which means it's dust-tight and protected against high-pressure water jets from any direction. This makes it a good choice for use in demanding industrial environments, including marine applications.

Features & Benefits

• Compact diameter of 219mm for use in areas where space is limited
• Loud sound output of 108dB (decibels) means it's audible over industrial noise
• Steel construction with zinc powder coating for resistance to corrosion and impact
• Adjustment slots make it easy to customise the fit of the siren
• Anti-tamper gong bolt for improved safety

Applications

• Laboratory safety applications
• Industrial machinery
• Power plants
• Marine vessels

Is this siren energy-efficient?

Yes. Thanks to its low current consumption of just 110mA, this siren is an energy-efficient choice.
