A8BM-230AC, Moflash A8BM Series Surface Mount Siren, 230 V ac, 108dB at 1 m, IP66, AC, Single-Tone

Moflash A6BM / A8BM Solenoid Driven Bell

The Moflash A6BM and A8BM solenoid driven bells have been designed and manufactured to withstand harsh environmental conditions. They are ideally suited to heavy duty industrial & marine applications where rugged construction and a high weatherproof classification is required. The bells produce a rich and clear traditional sound that is free from mechanical clatter. Up to 4 x M20 cabling entry knockouts, two from above and one on either side allow for loop in/loop out cabling applications. The A6BM and A8BM caters for 4 x 2.5mm² termination inside the enclosure.

3 point fix with adjustment slots
Dustproof and weatherproof
Loop in & loop out cabling option
IP66 protection
106 dB or 108 dB
Duty cycle: max 10 mins ON, 30 mins OFF
AC supply 50/60 Hz
UV stable polypropelene back box
Zinc powder coated steel gong
RoHS compliant

Approvals

IEC 60533:1999 approved for installation on ships.
AEN 50130-4:2011 approved for Fire/Security.

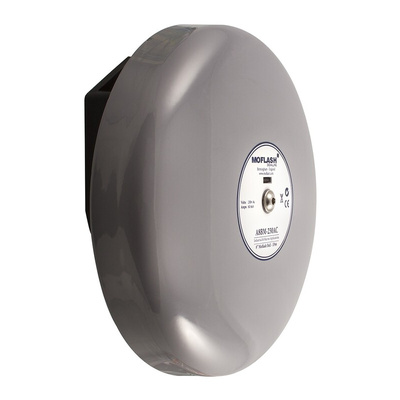

Moflash Grey Solenoid Bell, 108dB, 219mm Diameter - A8BM Series - A8BM-230AC

Use this single-tone siren from Moflash in harsh outdoor and marine conditions. The UV (ultraviolet) stable polypropylene rear box and zinc powder-coated steel gong are corrosion-resistant and designed to cope with all weather conditions. A high IP67 (ingress protection) rating means the unit is dust-tight and can withstand brief immersion in water. The solenoid-driven bell creates a clear ringing sound at 106dB for good audibility in noisy environments. A high duty cycle with 10 minutes of on-time means the alarm can sound for prolonged periods.

Features & Benefits

• Internal wire terminals protect the connection from damage
• Gong bolt prevents tampering in busy or public spaces
• Meets IEC (International Electrotechnical Commission) standard 60533:1999 for installation on ships
• Complies with European safety standard 50130-4:2011 for fire alarms in commercial and industrial buildings
• Mounting box takes up to four entry knockouts for loop-in and loop-out cabling on multiple alarm systems

Applications

• Shipping and marine
• Fire safety
• Oil and gas industry

Is this solenoid bell easy to install?

Yes. It has three fixing slots for flexible mounting and takes standard-sized 2.5mm² cables. The alarm can be mounted on any flat wall, just make sure it's positioned so that the clanger is pointing upwards.
