LED-MINI-02-02, Moflash LED-MINI Series Red Steady Effect Beacon Unit, 12 → 24 V dc, LED Bulb, DC, IP54

Moflash LED-MINI Modular Signal Tower

The LED-MINI modular signal towers are ideally suited for status indication in light commercial signalling applications where a low cost, compact and local signal is required. The beacons have a continuous/static light (single stage alarm), so once the beacon is energised the LED’s will stay permanently on.
An advantage of this type of operation is that it can be controlled via a remote source such as a control panel or plc, giving the beacon greater flexibility by offering a flashing second stage alarm.
The LED-MINI is a modular system that is easily assembled. The colour beacons have quick fix terminations that simply push into the male terminals in the module below to make the connection.

Features and Benefits

• Continuously rated
• LED long life
• Low current consumption
• Economical
• 360° light output around the vertical axis
• UV stable polycarbonate lens and base
• IP54 protection
• RoHS compliant

Note

There are three base mounting options available: a mounting foot & 100mm pole (stock no. 901-0738); a mounting bracket & 100mm pole (stock no. 901-0747); or mounting foot, top cap & 100mm pole (stock no. 901-0740). Each base is supplied with a 1 metre flying lead.

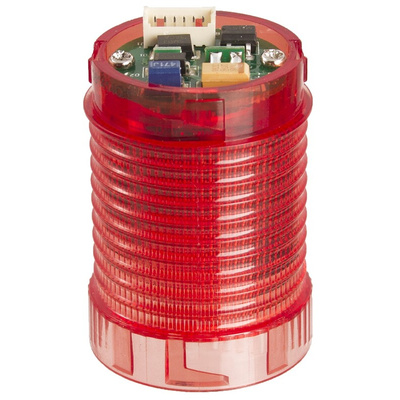

Moflash Steady Red LED Beacon, 12 to 24V DC, 42mm Height- LED-MINI Series - LED-MINI-02-02

Use this red beacon from Moflash as part of a signal tower to warn of a dangerous situation in your workplace. The unit features eight LED bulbs that emit a bright, steady light that can be seen in most lighting conditions. It has a 360° beam output around the vertical axis, ensuring good visibility from all angles. The durable PC (polycarbonate) lens is impact-resistant for use in harsh industrial environments.

Features & Benefits

• IP54 (ingress protection) rating indicates limited protection against dust and water sprays
• Wide operating temperature range of -20°C to +66°C for use in demanding environments
• Low current consumption of 80mA at 12V DC and 45mA at 24V DC for energy-efficient operation
• Compatible with PLCs (programmable logic controllers) for enhanced control

Applications

• Industrial automation
• Manufacturing industry
• Warehousing and logistics

How do I incorporate this beacon into a signal tower?

This beacon's modular design features a quick-fix termination method. This means you can simply push the beacon into the terminals of another beacon, saving you time and effort during installation.
