LED-MINI-FT100, Moflash Mounting Base with Tube for Use with LED-MINI Series

Moflash LED-MINI Modular Signal Tower

The LED-MINI modular signal towers are ideally suited for status indication in light commercial signalling applications where a low cost, compact and local signal is required. The beacons have a continuous/static light (single stage alarm), so once the beacon is energised the LED’s will stay permanently on.
An advantage of this type of operation is that it can be controlled via a remote source such as a control panel or plc, giving the beacon greater flexibility by offering a flashing second stage alarm.
The LED-MINI is a modular system that is easily assembled. The colour beacons have quick fix terminations that simply push into the male terminals in the module below to make the connection.

Features and Benefits

• Continuously rated
• LED long life
• Low current consumption
• Economical
• 360° light output around the vertical axis
• UV stable polycarbonate lens and base
• IP54 protection
• RoHS compliant

Note

There are three base mounting options available: a mounting foot & 100mm pole (stock no. 901-0738); a mounting bracket & 100mm pole (stock no. 901-0747); or mounting foot, top cap & 100mm pole (stock no. 901-0740). Each base is supplied with a 1 metre flying lead.

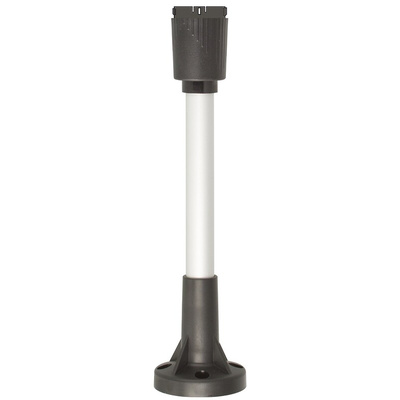

Moflash Mounting Base With Pole, 100mm Height, 30mm Base Diameter - LED-MINI Series - LED-MINI-FT100

Elevate your signal tower with this mounting base from Moflash. It includes a pole with a height of 100mm to increase the visibility of your signals. The unit's IP54 rating indicates resistance to limited amounts of dust and water splashes for use in demanding environments. Its mounting foot allows you to position your signal tower on a floor or flat surface for added stability.

Features & Benefits

• Wide operating temperature range between -20°C and +66°C for use in demanding environments
• Compatible with elements in the LED-MINI series for ease of assembly
• Supplied with a 1m flying lead for ease of wiring

Applications

• Control industry
• Alarm systems
• Processing plants

Why should I use a signal tower?

Signal towers are an easy way to convey important information in large or busy work environments. They can include a customised combination of visual and audible elements for versatile signalling.
