FLUKE-T150/PRV240, Fluke T150 Voltage Indicator & Proving Unit Kit ≤5μA 6 → 690V, Kit Contents 4 mm Dia. Probe Extension, GS38

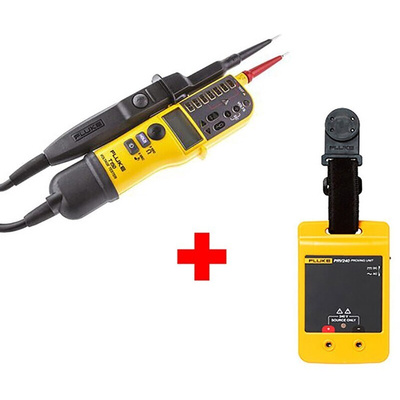

Fluke T150 Tester and PRV240 Unit Kit

Before carrying out any repairs or maintenance on electrical equipment it is essential that all circuits are isolated correctly and safe to work on. Engineers and electricians must be completely confident that all necessary checks have been made, in accordance with the Electricity at Work Regulations.

The Fluke T150/PRV240 bundle is a top of the range approved electrical test kit. It comprises of the Fluke T150 Voltage and Continuity Tester and the PRV240 Proving Unit. The advanced kit is built with the latest cutting-edge measurement and safety technology, ensuring fast, accurate results.

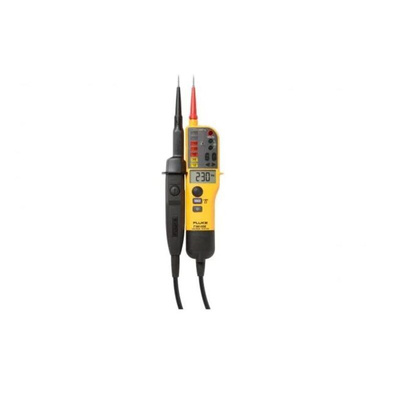

T150 Voltage and Continuity Tester

Robustly designed, the T150 two-pole voltage tester has a CAT III 690V & CAT IV 600V safety rating and complies with EN 61243-3:2010. Packed with an abundance of additional features the Fluke T150 is a must for any experienced professional. Constructed from high-quality materials this device is built to last. A simple-to-use tool for conducting safe isolation procedures.

Features and Benefits

• Compact and lightweight
• Ergonomically designed for maximum comfort
• IP64 ingress protection
• 4-way detection for AC/DC voltages, bright LED indication, LCD, audible continuity and tactile vibration
• RCD functionality, draw more current from the circuit to intentionally trip an RCD
• Single-phase voltage for rapid identification of live conductors
• Resistance measurement up to 1999Ώ
• Backlit LED Indicator, backlit LCD digital display, for low light conditions
• Built-in torch
• Switchable Audible tone, for use in quiet areas
• Low battery indication
• Display hold function
• Heavy-duty double insulated leads with WearGuard™ Insulation clearly indicating any damage to test leads
• GS38 compliant Push-on tips
• Probe tip protector

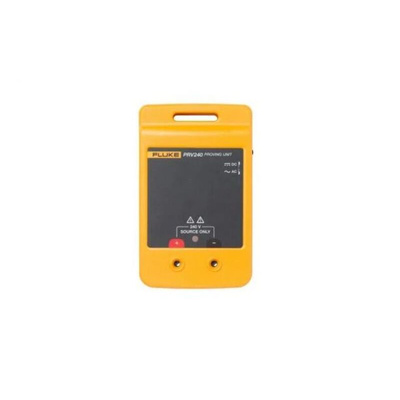

PRV240 Proving Unit

The Fluke PRV240 Proving device is a pocket-sized portable voltage source up to 240V. Tough and lightweight, the battery-powered unit enables voltage indicators to be fully checked and verified according to the latest Health and Safety Recommendations. Essential before any testing can be carried out. The Fluke PRV240 proving unit is compatible with both high and low impedance Multimeters, clamp meters, and two-pole testers.

Features and Benefits

• Constructed from tough high-quality materials
• Compact and lightweight
• IEC61010-1 & IEC61010-2-030 safety rating
• Single LED Indication
• Long battery life
• Powered by 4 x AA alkaline batteries

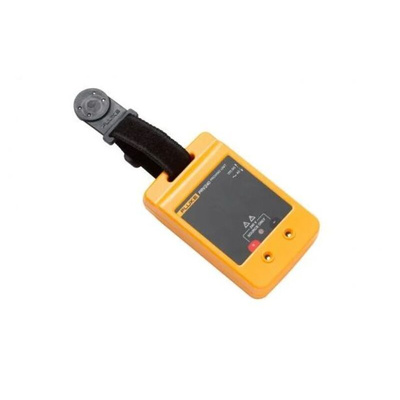

• Includes a TPAK magnetic hanging strap for convenience

Applications

Designed to suit a wide range of applications, voltage indicators and their proving units are used to check electrical equipment is functioning safely and at the levels, they should be. It is imperative that equipment, machinery or installations are prepared for any works to be carried out. Some of the most common applications and environments are

• Electrical contractors
• Power, energy and utility plants
• Industrial engineering
• Factories, schools, and hospitals

FAQ

Q: Are there any additional accessories or spares available?
A: Yes, RS Components offer the following part numbers
• 750-8444 for the T150 Voltage Indicator
• 744-2209 for replacement AAA 1.5V batteries (for the T150)
• 881-2775 for the PRV240 Proving Unit
• 744-2199 for replacement AA 1.5V batteries (for the PRV240)
• 817-1548 for the C150 soft carry case, suitable for the T150

FLUKE Voltage Tester and Proving Unit Kit, LCD Display, Battery Powered - FLUKE-T150/PRV240

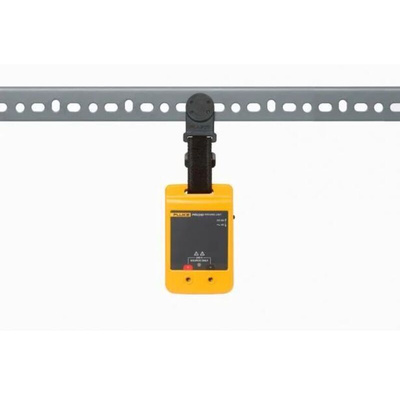

Keep an eye on your equipment's electrical performance with this voltage tester and proving unit kit from FLUKE. It contains two separate items that help you carry out testing tasks safely. The tester measures the voltage and continuity of two-phase circuits, while the proving unit checks the measurement accuracy of the tester. You can monitor both devices and take readings with ease thanks to a backlit and crystal-clear LED indicator. As the proving unit is supplied with a TPAK magnetic strap, you can mount it easily on hangers or rails.

Features & Benefits

• Voltage tester comes with an electric torch that boosts visibility in dimly lit environments
• Tester reads voltages between 6 and 690V AC/DC, making it a good fit for light-duty to medium-duty applications
• IP64 ratingindicates that it's protected against dust and water splashes from all directions

Applications

• Wind power plants
• Machine building
• Electric vehicles

How do I power the devices in this kit?

The tester and proving unit are powered by two AAA batteries and four AA batteries respectively. This means you don't need to connect to an external power source before using the devices.
