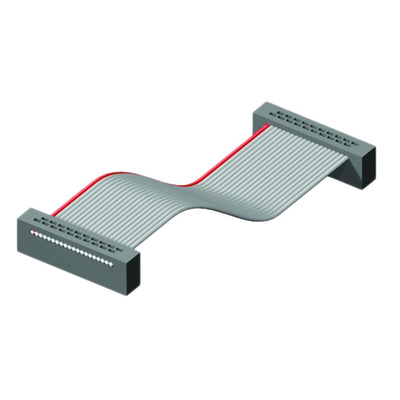

FFSD-05-D-04.00-01-N, Samtec FFSD Series Flat Ribbon Cable, 10-Way, 1.27mm Pitch, 100mm Length, Tiger Eye IDC to Tiger Eye IDC

Samtec Ribbon Cable, 2.3A Current Rating, Beryllium Copper Contact Material - FFSD Series - FFSD-05-D-04.00-01-N

Opt for an organised wiring solution with this ribbon cable from Samtec. It's made up of multiple conductors lined up parallel to each other for linking to different terminal ports. Thanks to its 10-way design, this double-row unit offers enough room to arrange a multi-power and multi-signal transmission system. As it's pre-terminated with Tiger Eye IDC connectors on both ends, you can quickly plug it into your socket without the hassle of terminating the connection points.

Features & Benefits

• Gold-plated contacts resist corrosion
• Integrated polarising notch for accurate mating
• Length of 100mm suits short-range connections
• Wide operating temperature range of -40°C to +105°C makes it suitable for use in harsh environments
• Current rating of 2.3A enables performance in low-power systems

Applications

• Consumer electronics
• Robotics
• Computer peripherals
• Aerospace engineering

Is this cable insulated?

Yes, this cable comes with durable PBT insulation between the conductors that delivers protection from electrical hazards.

What's the pitch size of this cable?

This cable has a pitch of 1.27mm, which ensures adequate spacing to prevent short circuits for increased safety.

FFSD 1.27mm Tiger Eye Flat IDC Ribbon Cable Assemblies (Drawing)

FFSD 1.27mm Tiger Eye Flat IDC Ribbon Cable Assemblies
