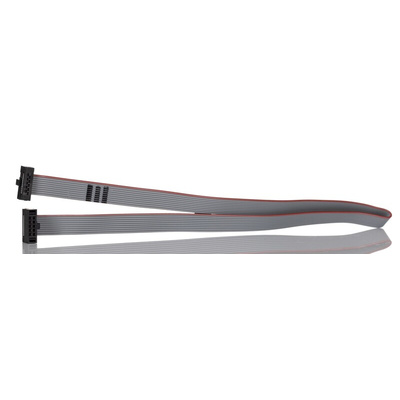

FFSD-05-D-10.00-01-N, Samtec FFSD Series Flat Ribbon Cable, 10-Way, 1.27mm Pitch, 250mm Length, Tiger Eye IDC to Tiger Eye IDC

Samtec Ribbon Cable, 30AWG Wire Size, Gold-Plated Contacts - FFSD Series - FFSD-05-D-10.00-01-N

Need a reliable multi-signal connection solution for your electronic device? This ribbon cable from Samtec does the trick. It's a 10-way unit that accommodates several connections at once for versatility. As its conductors are arranged in parallel, you get uniform information transmission, reducing the risk of crosstalk and EMI for clear signal quality. Thanks to a broad operating temperature range between -40°C and +105°C, this durable component can take the heat in harsh industrial conditions.

Features & Benefits

• Current rating of 2.3A for safe operation in low-power systems
• Contacts are gold-plated to resist corrosion and reduce maintenance
• Durable PBT insulator minimises the risk of electric shock
• Pitch of 1.27mm ensures adequate spacing between contacts to prevent short circuits

Applications

• Audio-visual devices
• Lighting fixtures
• Gaming consoles
• HVAC systems

What type of connectors does this product have?

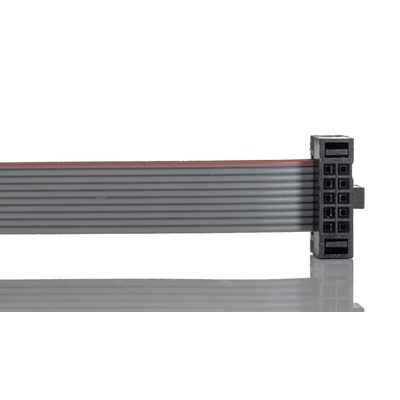

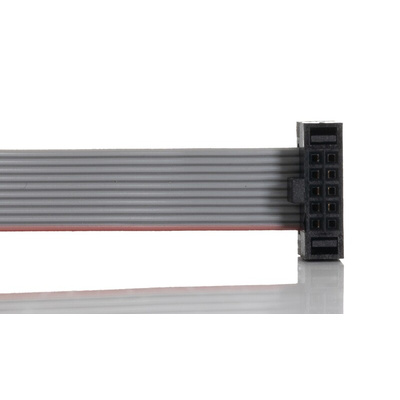

Both ends of this cable feature robust Tiger Eye IDC connectors that pierce through the cable jacket and reach the conductors. This removes the need to first strip the wire insulation, so you can get straight to set-up.

How can I ensure this cable is mated accurately?

This cable has a built-in polarising notch that locks it into the socket to reduce the risk of mating errors.

FFSD 1.27mm Tiger Eye Flat IDC Ribbon Cable Assemblies (Drawing)

FFSD 1.27mm Tiger Eye Flat IDC Ribbon Cable Assemblies
