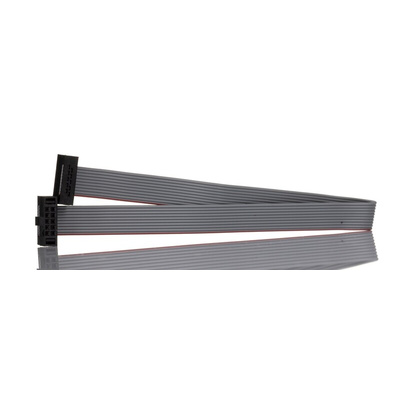

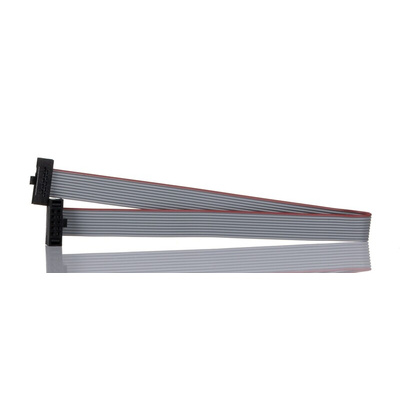

FFSD-05-D-06.00-01-N, Samtec FFSD Series Flat Ribbon Cable, 10-Way, 1.27mm Pitch, 150mm Length, Tiger Eye IDC to Tiger Eye IDC

Samtec FFSD Series 1.27mm Tiger Eye™ IDC Socket Ribbon Cable Assembly

FFSD series Tiger Eye™ IDC socket to socket ribbon cable assemblies consisting of a 30 AWG 0.635mm pitch grey ribbon cable with a 1.27mm pitch double row female socket either end with highly reliable gold plated Tiger Eye™ contacts and polarizing notch for accurate mating. These FFSD series IDC flat ribbon cable socket assemblies are available with up to 50 contacts and have an assembled length from 2 to10 inches.

Samtec Ribbon Cable, Beryllium Copper Contact Material, 1.27mm Pitch - FFSD Series - FFSD-05-D-06.00-01-N

Need a space-saving data transmission medium for your computers and automation units? Choose this ribbon cable from Samtec. It features flat conductors that are arranged side by side, making the unit fit for use in tight setups. As it has Tiger Eye connectors on both ends, you get a simple and tool-free link to your circuit board. Thanks to an insertion force of just 1.39N, it takes minimal effort to plug them in, saving you time and effort. This cable's short length of 15cm makes it the right choice for a clutter-free assembly.

Features & Benefits

• 10-way design gives you multi-circuit control and reduces the wiring needs of your system
• PBT insulation protects you from electrical hazards to ensure safe operation
• Beryllium copper contacts are highly conductive for a reliable connection
• Safe for use in rugged conditions, thanks to a broad operating temperature range of -40°C to +105°C

Applications

• Consumer electronics
• Server banks
• Robotics
• Automated terminals

What headers do this ribbon cable's connectors mate with?

This versatile cable is compatible with 10-pin headers in the FTS (767-6695), FTSH (451-736), ESHF (180-1748), EHF and SHF series.

FFSD 1.27mm Tiger Eye Flat IDC Ribbon Cable Assemblies (Drawing)

FFSD 1.27mm Tiger Eye Flat IDC Ribbon Cable Assemblies
