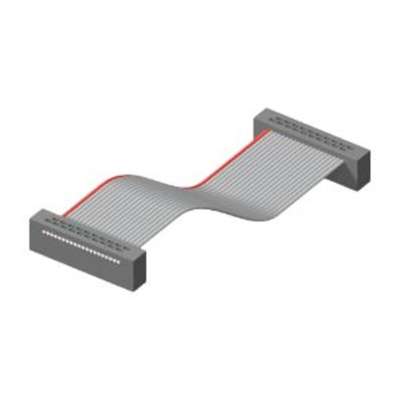

FFSD-10-D-06.00-01-N, Samtec FFSD Series Flat Ribbon Cable, 20-Way, 1.27mm Pitch, 150mm Length, Tiger Eye IDC to Tiger Eye IDC

Samtec Ribbon Cable, Shrouded Connectors, 2-Row Contact Layout - FFSD Series - FFSD-10-D-06.00-01-N

Looking to loop a new device into your board-mounted system? Link up with this Samtec ribbon cable. By clicking into headers (159-2325) using its Tiger Eye IDC connectors, it completes circuits in a flash. With support for current up to 2.3A, the lead powers through demanding signalling applications without a fuss. Mounting it into a small enclosure is a cinch, thanks to its compact 150mm length. As the cable comes with shrouded connectors, it has excellent resistance to impact.

Features & Benefits

• 20-way design handles multiple circuits simultaneously
• Regulation pitch size of 1.27mm easily fits in with everyday hardware
• Low insertion force of 1.39N per pin ensures it's effortless to plug in
• PBT insulation offers a high degree of electrical protection

Applications

• Processing plants
• Manufacturing industry
• Data centres

How do I know if I've properly lined it up when installing this cable?

This product's connectors use polarising notches, meaning they only mate when correctly aligned to stop damage from misalignment.

What environment is this ribbon cable suitable for?

It has corrosion-resistant gold-plated copper alloy contacts and an operating temperature range of -40°C to +105°C, so it's suitable for most installations.

FFSD 1.27mm Tiger Eye Flat IDC Ribbon Cable Assemblies (Drawing)

FFSD 1.27mm Tiger Eye Flat IDC Ribbon Cable Assemblies
