FFSD-17-D-02.00-01-N, Samtec FFSD Series Flat Ribbon Cable, 34-Way, 1.27mm Pitch, 50mm Length, Tiger Eye IDC to Tiger Eye IDC

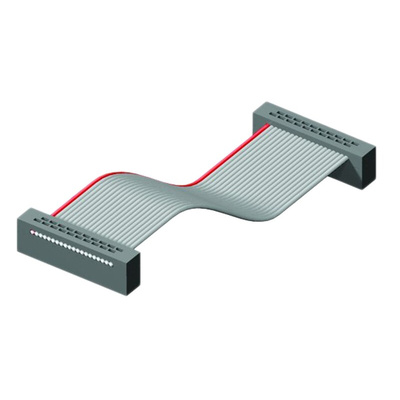

Samtec FFSD Series 1.27mm Tiger Eye™ IDC Socket Ribbon Cable Assembly

FFSD series Tiger Eye™ IDC socket to socket ribbon cable assemblies consisting of a 30 AWG 0.635mm pitch grey ribbon cable with a 1.27mm pitch double row female socket either end with highly reliable gold plated Tiger Eye™ contacts and polarizing notch for accurate mating. These FFSD series IDC flat ribbon cable socket assemblies are available with up to 50 contacts and have an assembled length from 2 to10 inches.

Samtec Ribbon Cable, 30AWG Wire Size, 0.83N Avg. Withdrawal Force - FFSD Series - FFSD-17-D-02.00-01-N

Set up a robust electrical connection to your device using this ribbon cable from Samtec. It's a 34-way unit to enable the stable transfer of power and data to connected equipment. This double-ended component is pre-terminated with Tiger Eye IDC connectors on both sides, so installing it with your socket is a simple matter of plug-and-go. Thanks to its flat design, you can neatly slip this cable into slim spaces in your setup.

Features & Benefits

• PBT insulating material safeguards against electrical hazards
• Beryllium copper contacts are highly conductive for reliable performance
• Polarising notch ensures mating is always done correctly
• Current rating of 2.3A per pin for safe use in low-power systems
• Withstands harsh conditions as it operates in temperatures ranging between -40°C and +105°C

Applications

• Computer peripherals
• Gaming devices
• HVAC systems
• Measuring instruments

What's the pitch size of this ribbon cable?

It has an industry-standard pitch size of 1.27mm for wide connector compatibility.

How long is this cable?

You can easily make short-range hookups with this cable, as it's just 50mm long.

FFSD 1.27mm Tiger Eye Flat IDC Ribbon Cable Assemblies (Drawing)

FFSD 1.27mm Tiger Eye Flat IDC Ribbon Cable Assemblies
