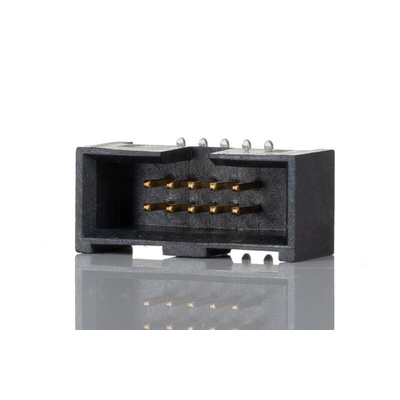

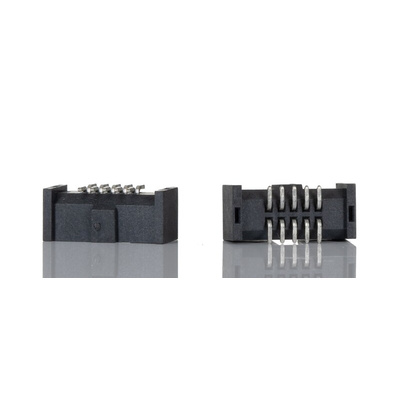

SHF-105-01-L-D-SM, Samtec SHF Series Straight Surface Mount PCB Header, 10 Contact(s), 1.27mm Pitch, 2 Row(s), Shrouded

Samtec SHF Series 1.27mm Shrouded PCB Headers

SHF series 1.27mm pitch shrouded double row PCB headers with polarizing notch for accurate mating and gold plated contacts. These SHF series 1.27mm PCB headers are available as right angle PCB through hole mounting or PCB SMT mount with up to 50 contacts. For mating connectors see FFSD and FFTP series IDC socket cable assemblies

Samtec PCB Header, Solder Termination Method, Wire-to-Board Connector System - SHF Series - SHF-105-01-L-D-SM

Need a smart way to link your computing applications? Reach for this 10-way PCB header from Samtec to make multiple electrical connections from a single block. It has two rows of five pins to keep your connections organised. A shrouded enclosure surrounds the pins, preventing them from bending under pressure for a locked fit to your board. As the gold-plated phosphor bronze contacts are highly conductive and resistant to corrosion, you get reliable signal transmission. Surface mounting makes installation a breeze, as you can connect the component directly to your PCB.

Features & Benefits

• Solder termination method gives a secure, vibration-proof connection
• Polarising notch helps with positioning for more accurate mating
• Suitable for use in harsh conditions, thanks to a wide operating temperature range of -55°C to +125°C

Applications

• Industrial server racks
• Smart device manufacturing
• Factory automation

What's the pitch of this PCB header?

This PCB header has a compact pitch of 1.27mm to ensure your connections take up minimal space.

What's the orientation of this PCB header?

The unit has a straight body, with contact pins sticking upright from the base to ensure straightforward mating.
