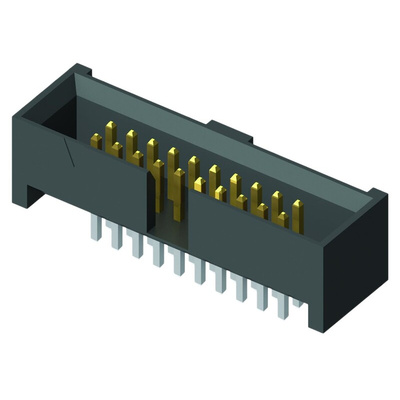

SHF-105-01-L-D-TH, Samtec SHF Series Straight Through Hole PCB Header, 10 Contact(s), 1.27mm Pitch, 2 Row(s), Shrouded

Samtec SHF Series 1.27mm Shrouded PCB Headers

SHF series 1.27mm pitch shrouded double row PCB headers with polarizing notch for accurate mating and gold plated contacts. These SHF series 1.27mm PCB headers are available as right angle PCB through hole mounting or PCB SMT mount with up to 50 contacts. For mating connectors see FFSD and FFTP series IDC socket cable assemblies

Samtec PCB Board, Phosphor Bronze Contact Material, Solder Termination Type - SHF Series - SHF-105-01-L-D-TH

Whether you're working on a prototype or permanent computing solution, turn to this PCB header from Samtec. It gives you a secure connection between PCBs with a sturdy wire-to-board installation. This header has contact pins arranged in two symmetrical rows of five, giving you up to 10 electrical connections for versatility. A pitch of 1.27mm helps to save space on your board. You can rely on this product to deliver a steady signal, as its gold-plated phosphor bronze contacts are highly conductive and resistant to corrosion.

Features & Benefits

• Performs reliably in challenging conditions, thanks to a broad operating temperature range between -55°C and +125°C
• Through-hole mounting ensures secure and simple installation
• Polarisation notch included for accurate positioning
• Insulated with heat-resistant liquid crystal polymer to minimise the risk of overheating

Applications

• Robotics engineering
• Consumer electronics
• Telecommunications

Is this PCB header shrouded?

Yes, the unit comes with a plastic shroud that protects the contact pins from mechanical damage. It also minimises the risk of short circuits for enhanced safety and effective data transmission.

SHF 1.27mm Shrouded PCB IDC Headers (Drawing)

SHF 1.27mm Shrouded PCB IDC Headers
