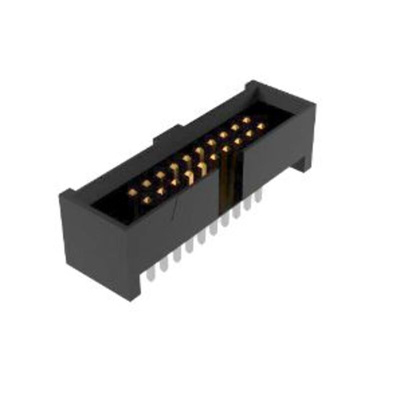

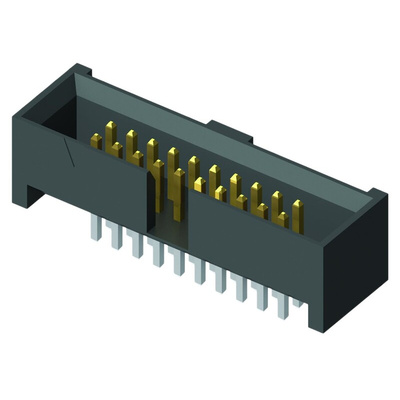

SHF-110-01-L-D-TH, Samtec SHF Series Straight Through Hole PCB Header, 20 Contact(s), 1.27mm Pitch, 2 Row(s), Shrouded

Samtec PCB Header, Phosphor Bronze Contacts, Solder Termination Method - SHF Series - SHF-110-01-L-D-TH

Make multiple connections with just one block thanks to this 20-way PCB header from Samtec. It has metal contact pins arranged in two symmetrical rows of ten to deliver data or power from a single module. A shrouded enclosure protects the header pins from external pressures, so you can count on a secure fit from wire to board. The straight-bodied orientation and simple through-hole mounting make installation of this unit a breeze, saving time and labour.

Features & Benefits

• Broad operating temperature range of -55°C to +125°C covers use in harsh conditions
• Polarising notch gives a helping hand with positioning for accurate mating
• Highly conductive phosphor bronze contacts come gold-plated on posts for extra strength
• Liquid crystal polymer insulation prevents overheating during use
• Solder terminated for secure installation that withstands industrial vibrations

Applications

• Electronic device manufacturing
• Data server racks
• IT security and computing
• Communications industry

What's the pitch on this PCB header?

The headers' contacts sit at a standard 1.27mm pitch, making this component a compact choice for multiple electronic applications.

SHF 1.27mm Shrouded PCB IDC Headers (Drawing)

SHF 1.27mm Shrouded PCB IDC Headers
