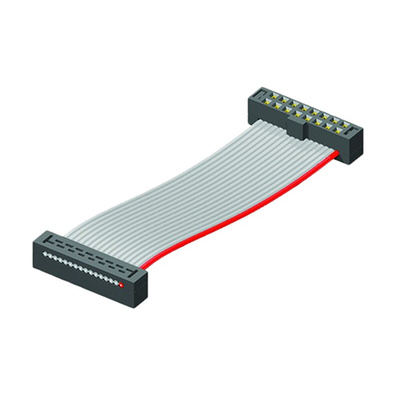

TCSD-08-D-02.00-01-N, Samtec TCSD Series Flat IDC Socket Cable Assembly, 16-Way, 2mm Pitch, 50mm Length, Tiger Eye IDC to Tiger Eye IDC

9012308
Номер производителя: TCSD-08-D-02.00-01-NПроизводитель: Samtec
Цена за шт.
3849.30 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Samtec TCSD Series 2.00mm Tiger Eye™ IDC Socket Ribbon Cable Assemblies

TCSD series IDC socket to socket ribbon cable assemblies consisting of a 28 AWG 7/36 stranded tinned copper wire PVC insulated ribbon cable with a 2.00mm pitch double row female socket either end with highly reliable gold plated IDC Tiger Eye contacts and polarizing notch for accurate mating. These TCSD series IDC ribbon cable socket assemblies are available with up to 50 contacts and have an assembled length of up to 10 inches.
For mating connectors see TMM, TMMH, STMM, MMT, TW, MTMM, EHT, ETMM and ZSTMM series headers

Samtec IDC Socket Cable Assembly, 15mΩ Contact Resistance, Double-Ended - TCSD Series - TCSD-08-D-02.00-01-N

For a dependable link between your computer and peripheral devices, choose this IDC socket cable assembly from Samtec. It features 16 beryllium copper contacts with a low resistance of 15mΩ, so you can count on a reliable connection. The component is terminated on both ends to save you installation time. Glass-filled polyester insulation is on hand to fend off unexpected electrical hazards during operation. A short length of 50mm means this cable is the ideal choice for equipment sited close together, resulting in clutter-free wiring.

Features & Benefits

• Current rating of 2.8A per pin makes it suitable for use in light-duty applications
• Notch polarisation prevents reverse insertion, safeguarding your equipment from damage
• Smooth-surface Tiger Eye contacts offer an extended number of mating cycles and a longer plating life

Applications

• Server banks
• Radio and TV broadcast studios
• Security and surveillance systems

What's the temperature tolerance of this cable?

This unit functions in operating temperatures between -40°C and +105°C, handling challenging environments with ease.

Does this cable come in any other length?

Yes, you can opt for the longer 250mm version (901-2318) if you need extra reach between your devices.

Техническая спецификация
pdfTCSD 2.00mm Tiger Eye IDC Socket Ribbon Cable Assembly (Drawing)
pdfTCSD 2.00mm Tiger Eye IDC Socket Ribbon Cable Assembly
pdfBrochure - Flexible Stacking
pdfGuide - Rugged/Power Interconnect Solutions Guide
pdfCatalogue - A Different Breed of Cat
Американский размер проводов:
28 AWG
Встречающиеся стандарты:
RoHS Compliant, UL
Диапазон рабочих температур:
-40 → +105 °C
Длина:
50мм
Жилы:
7/36
Количество нитей:
7
Количество путей:
16
Номинал тока:
2.8 A
Обжатый/Необжатый:
Terminated
Рабочая температура - максимальная:
+105°C
Рабочая температура - минимальная:
-40°C
Размеры нитей:
7/36
Разъем 1:
Tiger Eye IDC
Разъем 1, Род:
Female
Разъем 2:
Tiger Eye IDC
Разъем 2, Род:
Female
Серия:
TCSD
Тип ленточного кабеля:
Flat
Тип проводника:
Stranded
Цвет оболочки:
Серый
Шаг:
2мм
