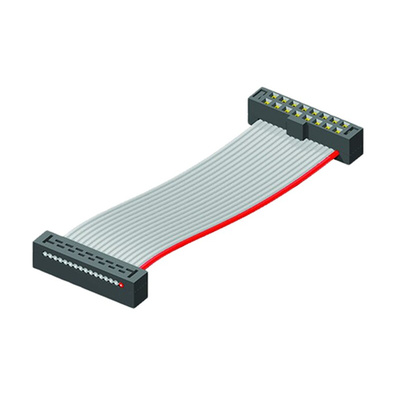

TCSD-10-D-02.00-01-N, Samtec TCSD Series Flat IDC Socket Cable Assembly, 20-Way, 2mm Pitch, 50mm Length, Tiger Eye IDC to Tiger Eye IDC

Samtec TCSD Series 2.00mm Tiger Eye™ IDC Socket Ribbon Cable Assemblies

TCSD series IDC socket to socket ribbon cable assemblies consisting of a 28 AWG 7/36 stranded tinned copper wire PVC insulated ribbon cable with a 2.00mm pitch double row female socket either end with highly reliable gold plated IDC Tiger Eye contacts and polarizing notch for accurate mating. These TCSD series IDC ribbon cable socket assemblies are available with up to 50 contacts and have an assembled length of up to 10 inches.
For mating connectors see TMM, TMMH, STMM, MMT, TW, MTMM, EHT, ETMM and ZSTMM series headers

Samtec IDC Socket Cable Assembly, 28AWG Wire Size, 15mΩ Contact Resistance - TCSD Series - TCSD-10-D-02.00-01-N

Looking for a neat way to connect a device in your circuit? This short, 50mm IDC socket cable assembly from Samtec is just what you need. It's a 20-way unit with ports arranged in two rows for organised signal transmissions. As it has Tiger Eye connectors on both ends, you get a hardwearing linkup without the hassle of having to strip and terminate wires. This cable has a current rating of 2.8A per pin, making it the ideal connection solution for your low-power electrical systems.

Features & Benefits

• Notch polarisation prevents incorrect mating
• Beryllium copper contacts deliver stable conductivity and corrosion resistance
• Black glass-filled polyester insulation protects against electric shock
• Compact pitch of 2mm makes it the right fit for small conductors

Applications

• Medical and pharmaceutical devices
• Storage facilities
• Communications equipment
• Office appliances

What's the difference between a flat and a round IDC cable?

Flat IDC cables are made up of multiple wires arranged in a levelled structure. In a round ribbon cable, the conductors are cited circularly. The flatter versions benefit from high pin density and routing efficiency as they slot smoothly into tight spaces.
