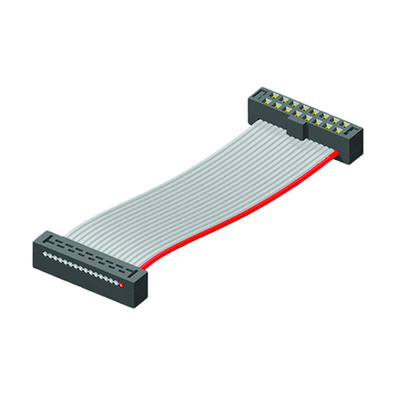

TCSD-10-D-06.00-01-N, Samtec TCSD Series Flat IDC Socket Cable Assembly, 20-Way, 2mm Pitch, 150mm Length, Tiger Eye IDC to Tiger Eye IDC

Samtec TCSD Series 2.00mm Tiger Eye™ IDC Socket Ribbon Cable Assemblies

TCSD series IDC socket to socket ribbon cable assemblies consisting of a 28 AWG 7/36 stranded tinned copper wire PVC insulated ribbon cable with a 2.00mm pitch double row female socket either end with highly reliable gold plated IDC Tiger Eye contacts and polarizing notch for accurate mating. These TCSD series IDC ribbon cable socket assemblies are available with up to 50 contacts and have an assembled length of up to 10 inches.
For mating connectors see TMM, TMMH, STMM, MMT, TW, MTMM, EHT, ETMM and ZSTMM series headers

Samtec IDC Socket Cable Assembly, Tiger Eye Contacts, 28AWG Wire Size - TCSD Series - TCSD-10-D-06.00-01-N

Looking for a speedy way to set up cables? Choose this IDC socket cable assembly from Samtec. It uses plug-and-play technology, so it does away with the need to strip wires, saving you time and effort. To use it, simply pop it onto a compatible pin header from the TMM (198-2872), MTMM (451-445) or TMMH series (155-1525), and you're good to go. Rest easy, as the entire component is insulated to minimise the risk of electric shock. A current rating of 2.8A per pin means it's just the thing for low-power setups.

Features & Benefits

• Suitable for installation in harsh environments, thanks to its wide operating temperature range of -40°C to +105°C
• Tinned copper wires for high conductivity and corrosion resistance to ensure a reliable electrical connection

Applications

• Industrial automation
• Telecommunication networks
• Data centres

What are Tiger Eye contacts?

Tiger Eye is Samtec's patented connector system for high-cycle applications. These contacts are designed to take the load off the pins during insertion and withdrawal, making them ideal for systems that need regular adjustments.

TCSD 2.00mm Tiger Eye IDC Socket Ribbon Cable Assembly (Drawing)

TCSD 2.00mm Tiger Eye IDC Socket Ribbon Cable Assembly
