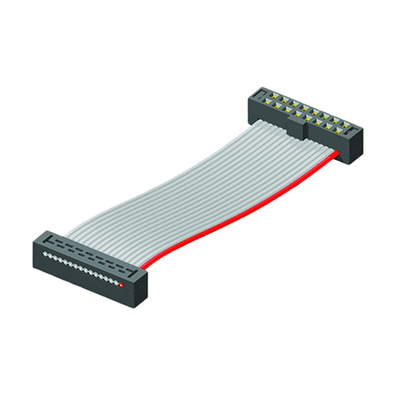

TCSD-20-D-06.00-01-N, Samtec TCSD Series Flat IDC Socket Cable Assembly, 40-Way, 2mm Pitch, 150mm Length, Tiger Eye IDC to Tiger Eye IDC

Samtec TCSD Series 2.00mm Tiger Eye™ IDC Socket Ribbon Cable Assemblies

TCSD series IDC socket to socket ribbon cable assemblies consisting of a 28 AWG 7/36 stranded tinned copper wire PVC insulated ribbon cable with a 2.00mm pitch double row female socket either end with highly reliable gold plated IDC Tiger Eye contacts and polarizing notch for accurate mating. These TCSD series IDC ribbon cable socket assemblies are available with up to 50 contacts and have an assembled length of up to 10 inches.
For mating connectors see TMM, TMMH, STMM, MMT, TW, MTMM, EHT, ETMM and ZSTMM series headers

Samtec TCSD Series IDC Socket Cable Assembly, Tiger Eye IDC - TCSD-20-D-06.00-01-N

This compact and efficient IDC socket cable assembly by Samtec features a tiger eye IDC connector and is part of the TCSD series. With a current rating of 2.8A, 28 AWG wire assembly, and a 40 way IDC cable, this product is perfect for applications in the automation, electronics, electrical, and mechanical industries. The flat ribbon cable assembly is terminated with a female IDC connector, making it easy to integrate into various systems.

Features & Benefits

• Tiger Eye IDC connector for secure connections
• 40 way IDC cable for versatile applications
• Female IDC connector for easy integration
• 28 AWG wire assembly for reliable performance
• RoHS compliant for environmentally friendly operations

Applications

• Ideal for use in automation systems for secure connections
• Perfect for electrical applications requiring a 40-way IDC cable
• Suitable for electronic devices that need a reliable female IDC connector

Can it handle high current loads?

This IDC socket cable assembly is designed to handle up to 2.8A of current, making it ideal for various applications in the automation and electrical industries.

Is it easy to install?

The female IDC connector makes it easy to install this cable assembly into existing setups, saving time and effort during integration.

Can it be used for both data and power transmission?

Yes, the 28 AWG wire assembly in this cable allows for both data and power transmission, making it a versatile solution for different applications.

TCSD 2.00mm Tiger Eye IDC Socket Ribbon Cable Assembly (Drawing)

TCSD 2.00mm Tiger Eye IDC Socket Ribbon Cable Assembly
