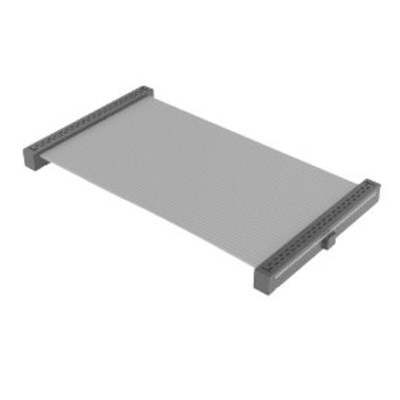

TCSD-20-D-08.00-01-N, Samtec TCSD Series Flat IDC Socket Cable Assembly, 40-Way, 2mm Pitch, 200mm Length, Tiger Eye IDC to Tiger Eye IDC

Samtec IDC Socket Cable Assembly, 2.8A Current Rating, Terminated - TCSD Series - TCSD-20-D-08.00-01-N

Transfer signals in your circuit from A to B with this IDC socket cable assembly from Samtec. It's a double-ended piece comprising numerous cables arranged in a parallel structure. The contacts are made of highly conductive tinned copper for reliable performance. As the accessory has a current rating of 2.8A, it's suitable for low-power electrical systems. A built-in polarising notch ensures the cable fits properly to prevent damage to the conductors. Thanks to its flat design, it slots neatly into slim enclosures.

Features & Benefits

• 40-way layout accommodates multiple signal transmissions
• Wide operating temperature range of -40°C to +105°C means it's tough enough for most applications
• Compact pitch of 2mm to fit small conductors
• Gold-plated contacts provide resistance to corrosion
• Dual Tiger Eye IDC termination for convenient socket mounting

Applications

• Audio-visual equipment
• Household appliances
• Lighting fixtures
• Robotics and automation
• Security systems

How long is this cable assembly?

It's just 200mm long, making it ideal for any setup where space is at a premium and a short-range connection is needed.

Is this unit insulated?

Yes. For a high degree of electrical safety, this IDC socket cable assembly is insulated with a robust PVC jacket.

TCSD 2.00mm Tiger Eye IDC Socket Ribbon Cable Assembly (Drawing)

TCSD 2.00mm Tiger Eye IDC Socket Ribbon Cable Assembly
