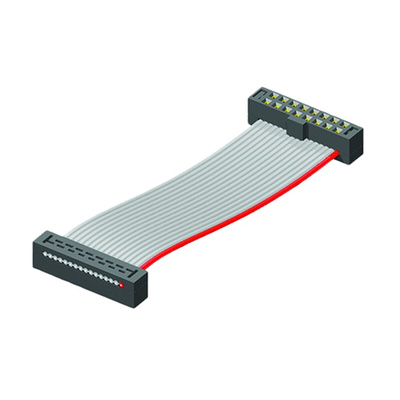

TCSD-25-D-06.00-01-N, Samtec TCSD Series Flat IDC Socket Cable Assembly, 50-Way, 2mm Pitch, 150mm Length, Tiger Eye IDC to Tiger Eye IDC

Samtec IDC Socket Cable Assembly, 2.87 to 3.17mm Insertion Depth, 152.4mm Length - TCSD Series - TCSD-25-D-06.00-01-N

Whether you're starting a new computer build or adding components to your setup, streamline your internal computer connections with this IDC socket cable assembly from Samtec. It features a female connector on each end for fast mating to speed up installation. An insertion depth of 2.87 to 3.17mm gives you a secure attachment to minimise malfunctions associated with incorrect mounting. Glass-filled polyester insulation adds mechanical strength and improves safety by dissipating heat. The internal tinned copper wires are highly conductive to keep electricity flowing strong.

Features & Benefits

• Compact length of 152.4mm to slot into tight spaces inside your computer
• Tin-over-nickel-plated beryllium copper contacts are resistant to corrosion for long-lasting conductivity
• Wide operating temperature range of -40°C to +105°C for use in challenging environments

Applications

• Computer building
• Commercial IT networking
• Gaming and arcade machines

What's the cable's pitch?

This cable features a 2mm pitch, meaning the centrelines of the conductors are 2mm from each other. The device you're linking up with will need a connector with the same pitch to ensure a proper and secure attachment.

TCSD 2.00mm Tiger Eye IDC Socket Ribbon Cable Assembly (Drawing)

TCSD 2.00mm Tiger Eye IDC Socket Ribbon Cable Assembly
