RS PRO Adjustable Roller Lever Limit Switch, NO/NC, IP65, DPST, Thermoplastic Housing, 400V ac Max, 10A Max

RS PRO, Snap Action Limit Switch - Thermoplastic Fibreglass, NO/NC, Adjustable Lever, 400 V, IP65

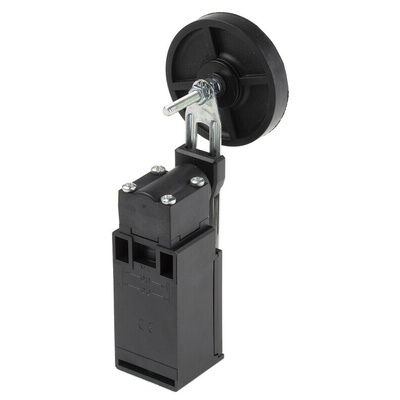

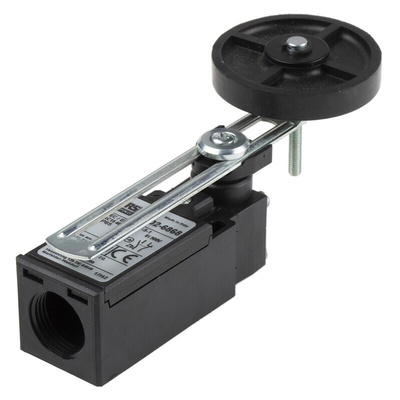

Looking for a reliable limit switch? This RS PRO piece is a roller-lever type of limit switch with a lever you can easily adjust to suit your application.
The housing has double insulation and is made from thermoplastic fibreglass to ensure safety, durability and resistance to corrosion. It has an Ingress Protection (IP) rating of IP65, so you can be sure the switch is shielded from dust and low-pressure jets of water. The actuator has an adjustable lever with a rubber roller to allow you to easily shorten or extend it to suit your requirements.
The switch has snap-action NO (normally open) and NC (normally closed) contacts. The product complies with British (BS EN 61340-5-1:2007) and American (ANSI/ESD S20.20:2014) electrostatic discharge (ESD) requirements, so you can rest assured the risk of a discharge is minimised.

Features and Benefits

• Adjustable lever actuator type
• Cable connection type
• Snap-action contact type
• Dimensions of 30.3 (length) x 170.5 (width) x 30 mm (depth)
• Thermoplastic fibreglass housing material
• IP65 rated
• Maximum voltage of 400 V AC
• Maximum current of 10 A
• Maximum voltage of 250 V DC
• Minimum operating temperature of -25°C
• Maximum operating temperature of +70°C
• Mechanical life (minimum) of 15000000 operations
• Vertical mounting orientation
• NO/NC normal state configuration
• Operating force of 0.1 N
• DPST (double pole, single throw) configuration
• Meets CE, CSA, RU, UL standards
• Screw terminal type

RS Pro Datasheet
