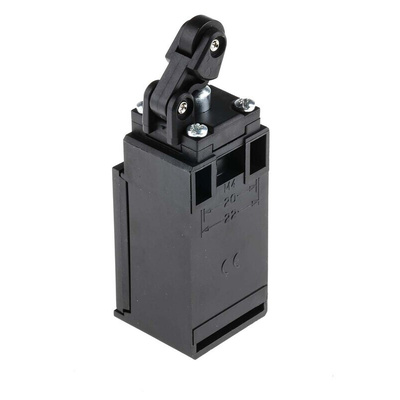

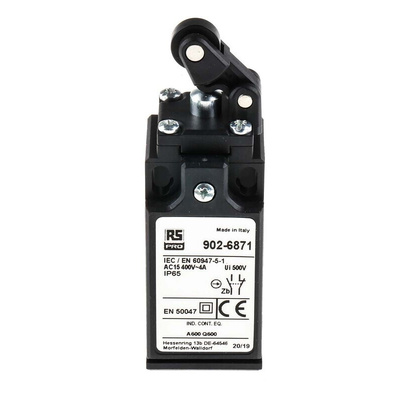

RS PRO Roller Lever Limit Switch, NO/NC, IP65, DPST, Thermoplastic Housing, 400V ac Max, 10A Max

RS PRO, Snap Limit Switch - Thermoplastic Fibreglass, NO/NC, Roller Lever, 400V, IP65

This easy-to-install snap limit switch is typically used to automatically control mechanical equipment in industrial applications. Featuring a simple, visible operation, it can be used to start, stop or slow down devices when a particular limit is reached. This could be when a part moves past a specific point, or when a pre-programmed number of objects is counted.

It can handle currents of up to 10 A and has a long-lasting, reliable snap action that ensures precise, repeatable contact closure. When you're not sure what arm length is required, the handy rotary lever actuator offers easy adjustments.

This snap limit switch offers double insulation with its UL-VO (flame-retardant) thermoplastic fibreglass construction. Moreover, it boasts an IP65 protection rating for dust and oil resistance. This versatile switch is suitable for controlling anything from robotic arms to garage doors.

Features and Benefits

• Dimensions of 30.3 mm (L) x 92 mm (W) x 30 mm (D)
• Maximum Voltage (AC) of 400 V
• Maximum Voltage (DC) of 250 V
• Cable connection
• Screw terminal
• DPST pole and throw configuration
• Minimum operating temperatures -25°C
• Maximum operating temperature of +70°C
• 7 N operating force
• Vertical orientation
• Minimum of 15,000,000 operations
• Snap minimum operating contact
• Thermoplastic fibreglass housing
• Roller lever actuator type
• Vertical mounting orientation
• IP65 rating for dust and water protection
• NO/NC normal state configuration
