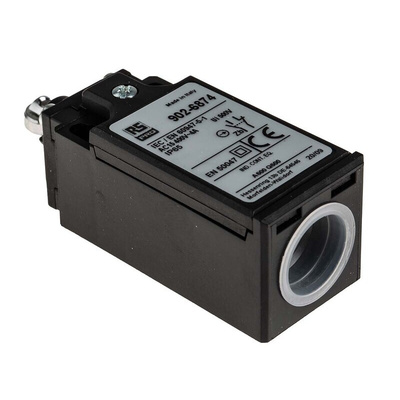

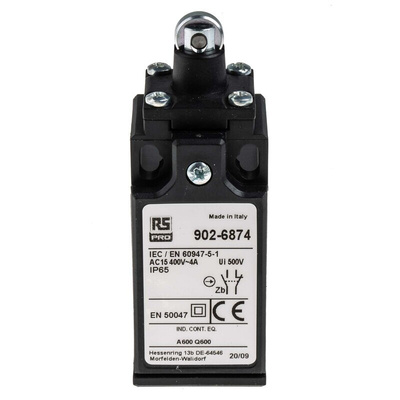

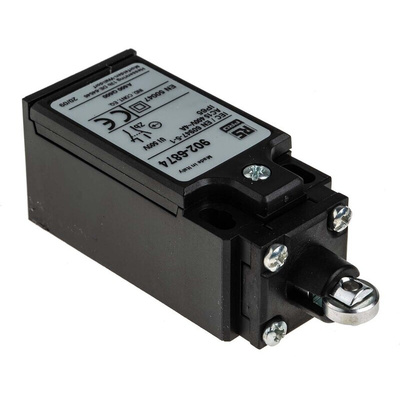

RS PRO Roller Plunger Limit Switch, NO/NC, IP65, DPST, Thermoplastic Housing, 400V ac Max, 10A Max

RS PRO Snap Limit Switch - Thermoplastic Fibreglass, NO/NC, Roller Plunger, 400V, IP65

Automatically control mechanical equipment in industrial applications with this snap limit switch. With easy installation and simple visible operation, it can start, stop or slow down a device when a limit is reached. For example, this could be when a pre-set number of objects is counted or when a part moves past a specific point.

Capable of handling currents of up to 10 A, the durable and reliable snap action of this limit switch guarantees precise, repeatable contact closure. The roller plunger is beneficial if there is some degree of side thrust.

The IP65 rating protects against dust and oil resistance and this limit switch from RS PRO is made from UL-VO (flame-retardant) thermoplastic fibreglass to offer double insulation. Able to control anything from a furnace to a garage door or a robotic arm, this snap limit switch is a versatile component.

Features and Benefits

• Dimensions of 30.3 mm (L) x 84 mm (W) x 30 mm (D)
• Maximum voltage (AC) of 400 V
• Maximum voltage (DC) of 250 V
• Cable connection
• Screw terminal
• DPST pole and throw configuration
• Operating temperature range of -25 °C to +70°C
• 12 N operating force
• Vertical orientation
• Minimum of 15,000,000 operations

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
