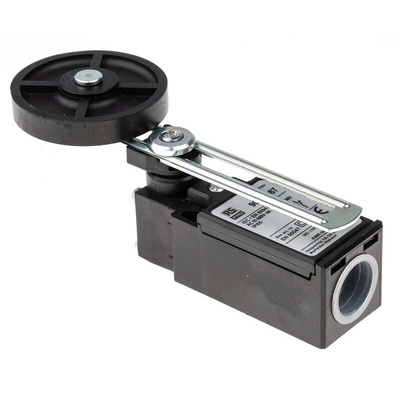

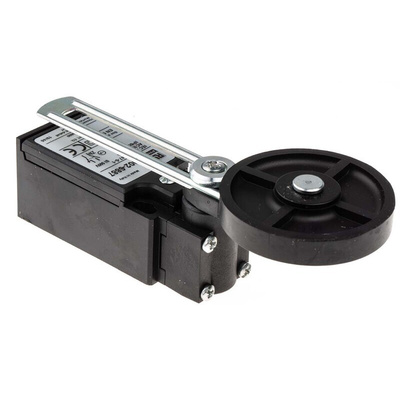

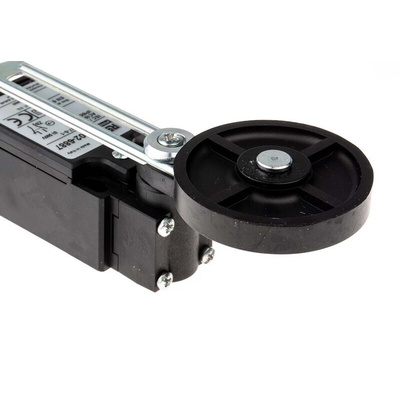

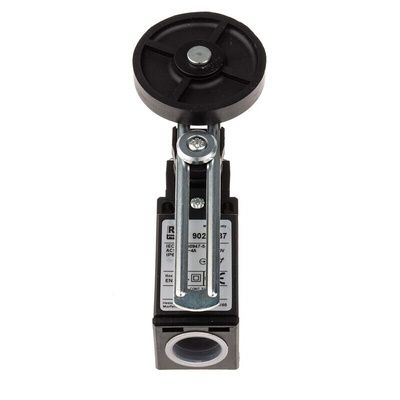

RS PRO Adjustable Roller Lever Limit Switch, NO/NC, IP65, DPST, Thermoplastic Housing, 400V ac Max, 10A Max

RS PRO Snap Limit Switch - Thermoplastic Fibreglass, NO/NC, Adjustable Lever, 400V, IP65

Commonly found in industrial applications, this easy-to-install snap limit switch is ideal for controlling mechanical equipment automatically. It features a simple, visible operation and can be used to start, stop or slow down devices when a set limit is reached. This could be when a pre-defined number of objects is counted, for example.

The switch is able to handling currents up to 10 A. As the rotary lever actuator is easily adjusted, it's useful if you're not sure what arm length is required. The long-lasting, dependable snap action of the switch offers precise, repeatable contact closure.

This limit switch boasts double insulation thanks to its flame-retardant thermoplastic fibreglass (UL-VO). It has an IP65 protection rating for resistance to dust, oil and water. This versatile component is used across industry and is suitable for controlling anything from robotic arms to furnaces and garage doors.

Features and Benefits

• Dimensions of 30.3 mm (L) x 170.5 mm (W) x 30 mm (D)
• Maximum Voltage (AC) of 400 V
• Maximum Voltage (DC) of 250 V
• Maximum current of 10 A
• Cable connection
• Screw terminal
• DPST pole and throw configuration
• Minimum operating temperatures -25°C
• Maximum operating temperature of +70°C
• 0.1 N operating force
• Vertical orientation
• Minimum of 15,000,000 operations
• Snap minimum operating contact
• Thermoplastic fibreglass housing
• Adjustable level actuator
• Vertical mounting orientation
• IP65 rating for dust and water protection
