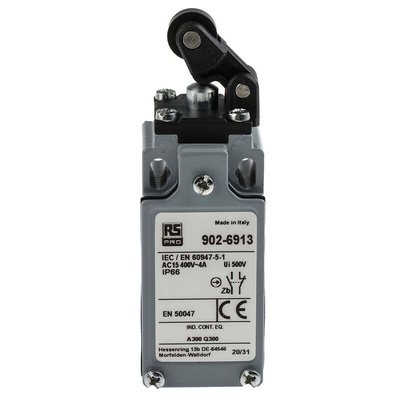

RS PRO Roller Lever Limit Switch, NO/NC, IP66, DPST, Zinc Alloy Housing, 400V ac Max, 10A Max

RS PRO, Snap Action Limit Switch - Zinc Alloy, NO/NC, Roller Lever, 400 V, IP66

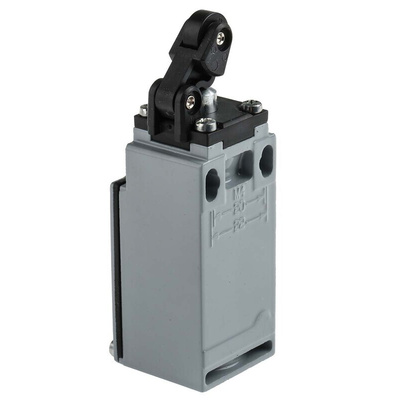

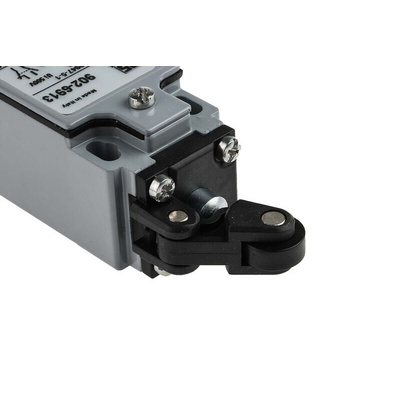

This roller-lever type limit switch from our trusted RS PRO range has an actuator consisting of a plastic roller lever that pushes on a metal plunger to actuate the switch and close or open your electrical circuit. The housing has double insulation for added safety.
It's manufactured from a zinc alloy that is known for its strength, durability and excellent resistance to corrosion. It has an Ingress Protection (IP) rating of IP66, so you can be sure the switch is perfectly protected from dust and can withstand temporary immersion in water.
This switch features snap-action NO (normally open) and NC (normally closed) contacts. The product is handled and packed in compliance with US (ANSI/ESD S20.20:2014) and UK (BS EN 61340-5-1:2007) electrostatic discharge (ESD) requirements, which guarantees the risk of a discharge is reduced.

Features and Benefits

• Roller lever actuator type
• Cable connection type
• Snap-action contact type
• Dimensions of 30.3 (length) x 94 (width) x 32.5 mm (depth)
• Zinc alloy housing material
• IP66 rated
• Maximum voltage of 400 V AC
• Maximum current of 10 A
• Maximum voltage of 250 V DC
• Minimum operating temperature of -25°C
• Maximum operating temperature of +70°C
• Mechanical life (minimum) of 15000000 operations
• Vertical mounting orientation
• NO/NC normal state configuration
• Operating force of 7 N
• DPST (double pole, single throw) configuration
• Meets CE, CSA, RU, UL standards
• Screw terminal type
