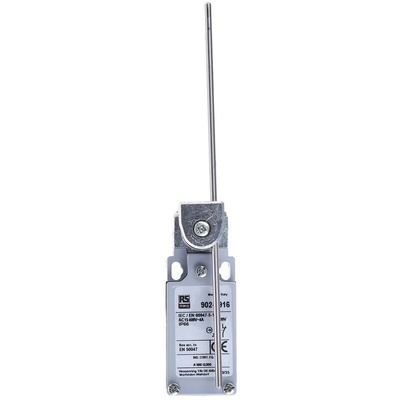

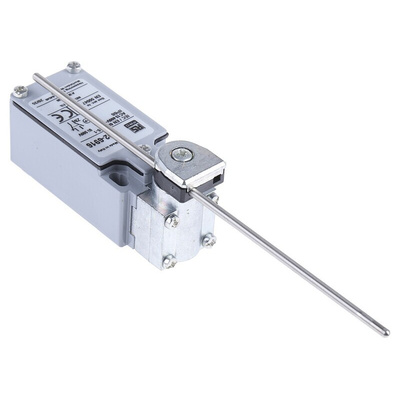

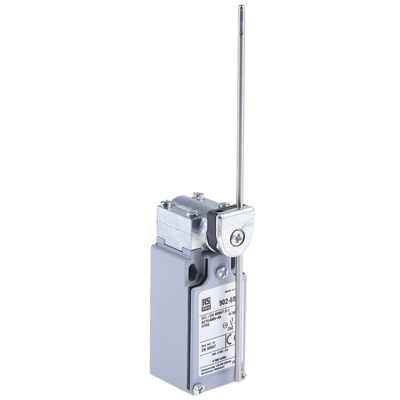

RS PRO Rod Limit Switch, NO/NC, IP66, DPST, Zinc Alloy Housing, 400V ac Max, 10A Max

RS PRO Snap Action Limit Switch, Zinc Alloy, NO/NC, Roller Lever, 400 V, IP66

This limit switch from RS PRO has an adjustable lever actuator that changes the electrical switches from the open to closed position and vice versa. This can activate or deactivate electrical circuits or indicate object position, presence and absence or limit of travel.


This limit switch is made from a strong, durable zinc alloy that has excellent resistance to corrosion. It has an IP66 rating, so it's completely dust-tight and waterproof.

The adjustable lever gives you a variety of options when installing this switch, making it a versatile choice. The switch features snap-action NO (normally open) and NC (normally closed) contacts. It complies with US (ANSI/ESD S20.20:2014) and UK (BS EN 61340-5-1:2007) electrostatic discharge (ESD) standards, so it won't interfere with electronic equipment.

Features and Benefits

• Adjustable lever actuator type


• Cable connection type


• Snap-action contact type


• Dimensions of 30.3 (length) x 232.5 (width) x 32.5 mm (depth)


• Zinc alloy housing material


• IP66 rated


• Maximum voltage of 400 V AC


• Maximum current of 10 A


• Maximum voltage of 250 V DC


• Operating temperature range of -25°C to +70°C


• Mechanical life (minimum) of 15000000 operations


• Vertical mounting orientation


• NO/NC normal state configuration


• Operating force of 0.1 N


• DPST (double pole, single throw) configuration


• Meets CE, CSA, RU, UL standards


• Screw terminal type
