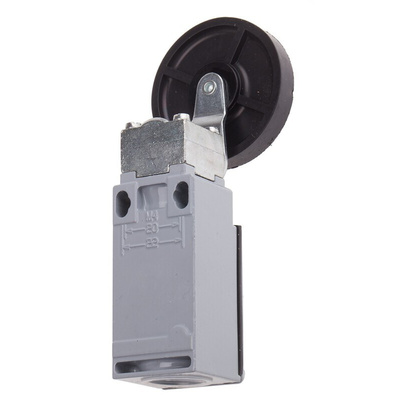

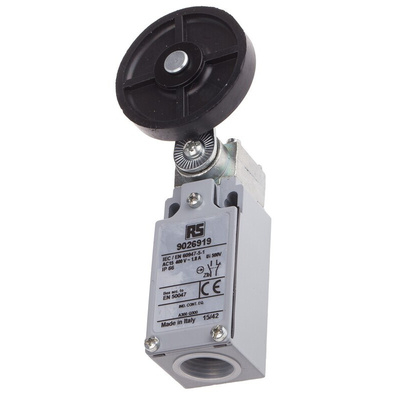

RS PRO Roller Lever Limit Switch, NO/NC, IP66, DPST, Zinc Alloy Housing, 400V ac Max, 10A Max

RS PRO Snap Action Limit Switch, Zinc Alloy, NO/NC, Roller Lever, 400 V, IP66

If you need a way to detect the position of objects or their limit of travel, choose this roller-lever limit switch from RS PRO. It has a plastic roller lever actuator that pushes on a metal plunger, switching the two circuit positions from NO (normally open) to NC (normally closed) and vice versa.


This limit switch has a double-insulated housing for added safety. The zinc alloy body material provides strength, durability and excellent corrosion resistance.


The switch's IP66 rating means it's completely dust-tight and protected against powerful water jets. It also meets US (ANSI/ESD S20.20:2014) and UK (BS EN 61340-5-1:2007) electrostatic control standards, so it won't interfere with nearby electronic components.

Features and Benefits

• Roller lever actuator type


• Cable connection type


• Snap-action contact type


• Dimensions of 30.3 (length) x 124 (width) x 32.5 mm (depth)


• Zinc alloy housing material


• IP66 rated


• Maximum voltage of 400 V AC


• Maximum current of 10 A


• Maximum voltage of 250 V DC


• Operating temperature range of -25°C to +70°C


• Mechanical life (minimum) of 15000000 operations


• Vertical mounting orientation


• NO/NC normal state configuration


• Operating force of 0.1 N


• DPST (double pole, single throw) configuration


• Meets CE, CSA, RU, UL standards


• Screw terminal type
