RS PRO Roller Plunger Limit Switch, NO/NC, IP67, DPST, Die Cast Zinc Housing, 240V ac Max, 5A Max

RS PRO, Snap Limit Switch – Die Cast Zinc Alloy, Thermoplastic, NO/NC, Roller Plunger, 240 V, IP67

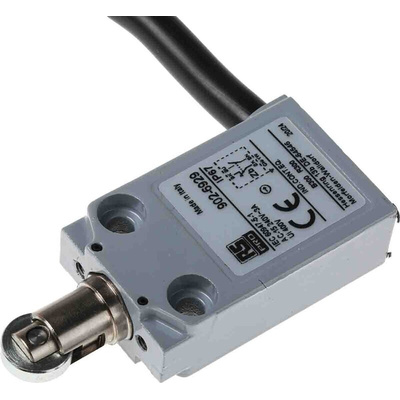

This easy-to-use electromechanical switch from RS PRO can detect a target object's presence and position, count passing objects and set limits on an object's travel. It has a die-cast zinc alloy casing sealed with epoxy resin at the box base and is fitted with a roller plunger actuator.

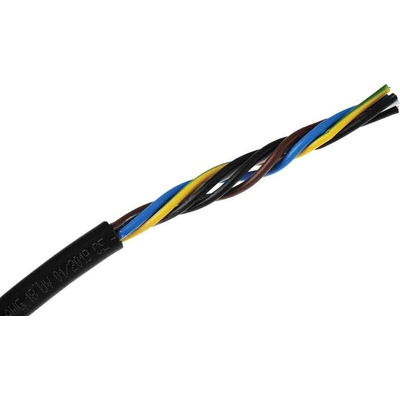

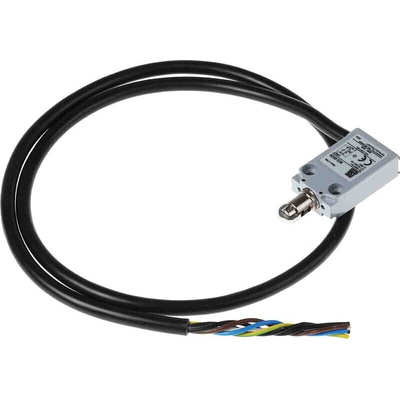

The pre-wired switch comes with a 5-core, 1-metre-long unterminated cable. It can switch strong currents, such as a 5 A conventional thermal current, and is immune to electromagnetic disturbances.

The device conforms to international (IEC 947-4-5-1) and European (EN 60 947-5-1) standards as a safe and effective limit switch. It offers class I protection against electric shocks in accordance with IEC 536, is IP67-rated for water resistance and complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 on electrostatic discharge.

This type of limit switch is common in automated systems like injection moulding machinery, electronic assembly equipment and platform lifts.

Features and Benefits

• Snap contact limit switch
• Double pole, single throw configuration contains two circuits with normally open (NO) or normally closed (NC) contacts
• Housing made from die-cast zinc alloy and thermoplastic
• Vertical mount
• Roller plunger actuator
• Minimum operating temperature of -25˚C
• Maximum operating temperature of +70C
• Voltage rating of 250 V dc, 240 V ac
• Current rating of 10 A
• Length of 31.5 mm
• Width of 70 mm
• Depth of 16 mm
• IP67-rated for water resistance
• Minimum mechanical life of 10,000,000 operations
• Insulation voltage rating of 400 V
• Operating force of 10 N
